Von Duprin LD9857EO / LD9957EO Three-Point Latching Panic Device, Less Dogging

Picture of Von Duprin LD9857EO / LD9957EO Three-Point Latching Panic Device, Less Dogging
Picture of Von Duprin LD9857EO / LD9957EO Three-Point Latching Panic Device, Less Dogging
Picture of Von Duprin LD9857EO / LD9957EO Three-Point Latching Panic Device, Less Dogging
Picture of Von Duprin LD9857EO / LD9957EO Three-Point Latching Panic Device, Less Dogging
naxt
prev

Product Details

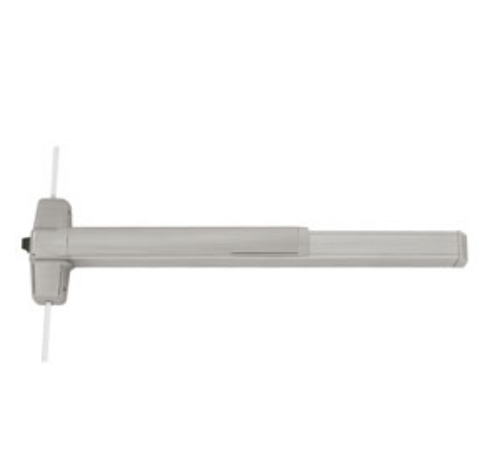

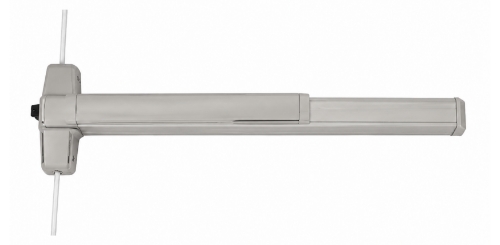

Von Duprin LD9857EO / LD9957EO Three-Point Latching Panic Device, Less Dogging

9857/9957 three-point latching device for all types of single or double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 2001 Grade 1.

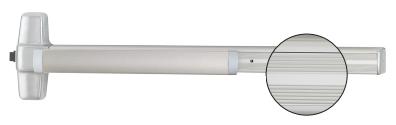

The 9857 device has a smooth mechanism case and the 9957 device has a grooved case.

Device Handing: Non-Handed.

Device Lengths: 3' (914mm), 4' (1219mm).

Door Height: 7' (2134mm) standard door height. Extension rods available for door heights up to 10'.

Covers stock hollow metal doors with 86 or 161 cutouts on single doors.

Dogging: Less Dogging

Latch Bolt: Deadlocking Anti-friction Top & Bottom Bolt, 5/8" (16mm) throw - Rim Bolt, 3/4" (19mm) throw.

Strike: Top & Middle - 299 - Dull Black, Bottom 248L4 & 304L - Unfinished.

Fasteners: Includes screw pack for 1-3/4" (44mm) to 2-1/4" (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. Optional 425 SNB available.

Finishes: US3 - Polished Brass , US4 - Dull Brass, US10 - Dull Bronze, US15 - Satin Nickel, US26 - Polished Chromium, US26D - Dull Chromium, US26D-AM Antimicrobial Satin Chrome, US28 - Anodized Aluminum, 313 - Duranodic Dark Bronze, 315 - Black,US32D - Satin Stainless Steel available with 98 Series only.

Dimensions

Device lengths: 3' 2'4' to 3' (711mm to 914 mm) Door Size.  4' 2'10" to 4' (864 mm to 1219 mm) Door Size.

Device Centerline from Finished Floor: 39-5/8" (1006 mm).

Center Case Dimensions: 8" x 2-3/4" x 2-3/8" (203mm x 70mm x 60mm).

Mechanism Case Dimensions: 2-1/4" x 2-1/4" (57mm x 57mm).

Top & Bottom Latch Case: 4-1/2" x 2-1/2" x 1-1/2" (114mm x 54mm x 38mm).

Projection: Pushbar Neutral 3-13/16" (97 mm). Pushbar Depressed 3-1/16" (78 mm).

All 98 and 99 series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade 1.

Model: Von Duprin LD9857, LD9957, LD9857EO, LD9957EO, LD9857/LD9957, LD9857/LD9957EO, RX9857, RX9957, RX9857EO, RX9957EO, RX, US3, US4, US10, US10B, US26, US26D, US28, US32D

Von Duprin LD9857EO / LD9957EO Three-Point Latching Panic Device, Less Dogging

SKU: LD9857EO/LD9957EO

In Stock

$2,549.44

Model *

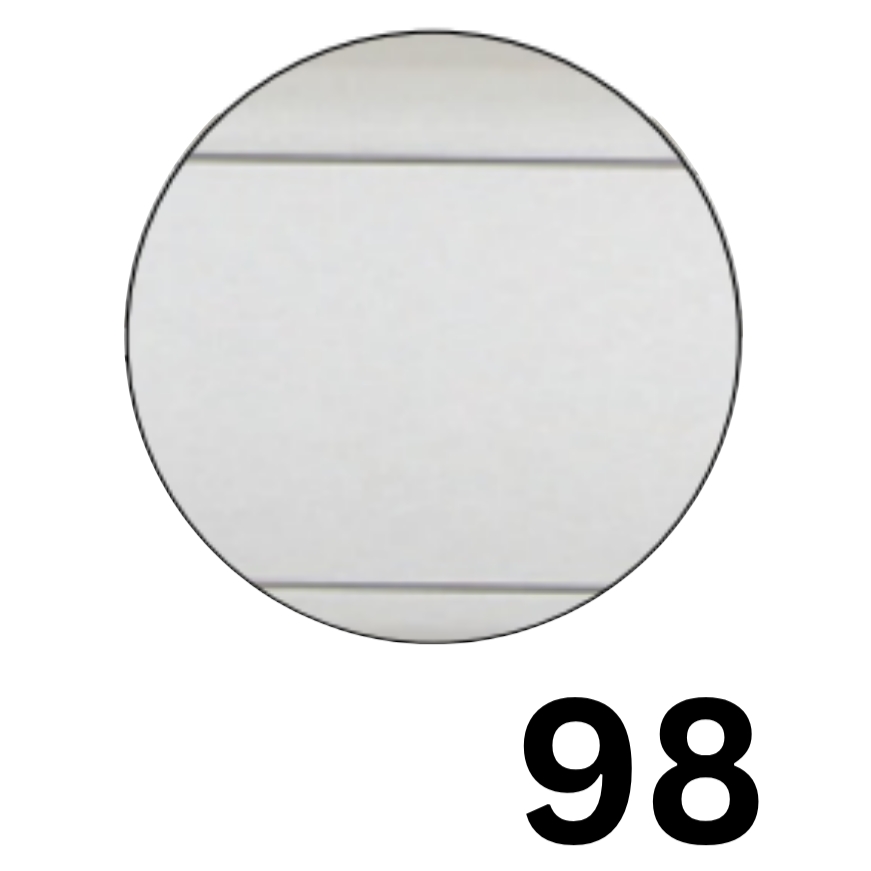

LD9857EO Series - Smooth mechanism case
LD9857EO Series - Smooth mechanism case

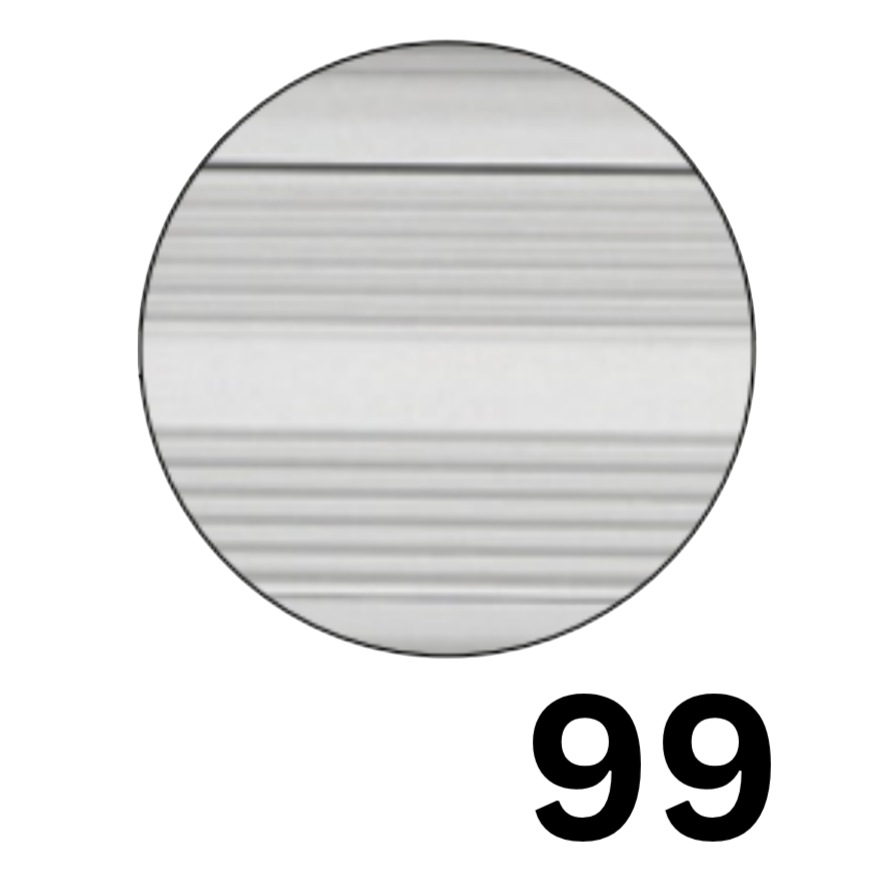

LD9957EO Series - Grooved mechanism case
LD9957EO Series - Grooved mechanism case

Size *

Finish *

US28 - Anodized, Aluminum (628)
US28 - Anodized, Aluminum (628)
26D - Satin Chrome (626)
26D - Satin Chrome (626)
32D - Satin Stainless Steel (630) For 98 only
32D - Satin Stainless Steel (630) For 98 only
710 - Dark Brown, Anodized (313)
710 - Dark Brown, Anodized (313)

About this item

All 98 and 99 series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade 1,

Click here for the 88/99 Series Trims section.

Von Duprin LD9857EO / LD9957EO Three-Point Latching Panic Device, Less Dogging

9857/9957 three-point latching device for all types of single or double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 2001 Grade 1.

The 9857 device has a smooth mechanism case and the 9957 device has a grooved case.

Device Handing: Non-Handed.

Device Lengths: 3' (914mm), 4' (1219mm).

Door Height: 7' (2134mm) standard door height. Extension rods available for door heights up to 10'.

Covers stock hollow metal doors with 86 or 161 cutouts on single doors.

Dogging: Less Dogging

Latch Bolt: Deadlocking Anti-friction Top & Bottom Bolt, 5/8" (16mm) throw - Rim Bolt, 3/4" (19mm) throw.

Strike: Top & Middle - 299 - Dull Black, Bottom 248L4 & 304L - Unfinished.

Fasteners: Includes screw pack for 1-3/4" (44mm) to 2-1/4" (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. Optional 425 SNB available.

Finishes: US3 - Polished Brass , US4 - Dull Brass, US10 - Dull Bronze, US15 - Satin Nickel, US26 - Polished Chromium, US26D - Dull Chromium, US26D-AM Antimicrobial Satin Chrome, US28 - Anodized Aluminum, 313 - Duranodic Dark Bronze, 315 - Black,US32D - Satin Stainless Steel available with 98 Series only.

Dimensions

Device lengths: 3' 2'4' to 3' (711mm to 914 mm) Door Size.  4' 2'10" to 4' (864 mm to 1219 mm) Door Size.

Device Centerline from Finished Floor: 39-5/8" (1006 mm).

Center Case Dimensions: 8" x 2-3/4" x 2-3/8" (203mm x 70mm x 60mm).

Mechanism Case Dimensions: 2-1/4" x 2-1/4" (57mm x 57mm).

Top & Bottom Latch Case: 4-1/2" x 2-1/2" x 1-1/2" (114mm x 54mm x 38mm).

Projection: Pushbar Neutral 3-13/16" (97 mm). Pushbar Depressed 3-1/16" (78 mm).

All 98 and 99 series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade 1.

Model: Von Duprin LD9857, LD9957, LD9857EO, LD9957EO, LD9857/LD9957, LD9857/LD9957EO, RX9857, RX9957, RX9857EO, RX9957EO, RX, US3, US4, US10, US10B, US26, US26D, US28, US32D
