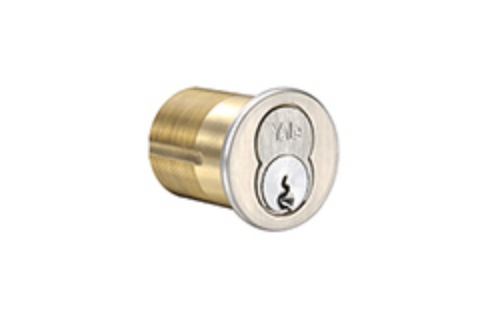

Accentra (Yale) 2196 1-1/2" Mortise Cylinder, Interchangeable Core, 6-pin

The Accentra (Yale) 2196 is a Large Format Interchangeable Core (LFIC) mortise cylinder with a 1-1/2-inch body length, a 6-pin configuration, and a 2160 cam. Also referenced in parts ordering and specification documents as dl 2196, 2196/6, and accentra 2196, this cylinder housing accepts Yale Full Size IC cores and installs in mortise lock bodies that require the 2196 LFIC format. Keyways are available across the GC through GH, SA through SH, and TA through TH series. Eight finish options are available including 612 satin bronze. SKU: 2196.

How the Yale 2196 LFIC mortise cylinder differs from the conventional 2153 mortise cylinder

The 2153 and 2196 are both Yale mortise cylinders in the 1-1/2-inch body length, but they use fundamentally different cylinder systems. The 2153 is a conventional pin cylinder: it has a fixed pinned plug that accepts a specific key and requires a locksmith to remove and repin the cylinder to change the key cut. The 2196 is an LFIC mortise cylinder housing with no fixed pin cylinder inside. It accepts a Yale Full Size Interchangeable Core that can be removed and replaced by an authorized person using a control key, without any tools and without disassembling the lock body.

This makes the 2196 the correct specification when a mortise lock installation needs to participate in a Yale LFIC key control program, where all cores across cylindrical locks, exit devices, and mortise locks are interchangeable within the same key system. The core change takes seconds at the door. For the same body length in a conventional pin cylinder format, the Accentra Yale 2153 112 conventional mortise cylinder is also stocked. For the full range of cylinders, cores, and cylinder components, the cylinders, cores, and keys section covers the available options.

Which Yale LFIC cores install in the 2196 mortise cylinder housing

The 2196 accepts Yale Full Size Interchangeable Core (LFIC) cores, which is the same large format core used across the Accentra and Yale line of LFIC-prepped hardware. The core is not included with the 2196 cylinder housing and must be ordered separately. The LFIC core must match the keyway designated on the 2196 housing for the key to pass through the housing and engage the core correctly.

The Yale 1210 and 1220 are the standard Yale LFIC cores. The 1210 is the 6-pin version and the 1220 is the 7-pin version. Both are compatible with the 2196 LFIC housing when the core and housing keyways match. For the Yale LFIC cores that install in the 2196, the Accentra Yale 1210 interchangeable core is stocked. For the full IC core range, browse the IC cores catalog. For mortise locks at American Locksets that accept the 2196 LFIC cylinder format, the mortise locks catalog covers the available range.

Keyway selection, finish options, and the 2160 cam on the 2196

The 2196 is available in GC through GH, SA through SH, and TA through TH Yale proprietary keyway series. The keyway designation on the 2196 housing must align with the keyway on the LFIC core being installed, as the housing keyway opening must allow the key to pass through and engage the core plug correctly. Confirm the keyway designation with the IC core supplier or the facility's key control authority before ordering.

The 2196 is available in eight finishes: 626 satin chrome, 606 satin brass, 605 bright brass, 625 bright chrome, 613 oil-rubbed bronze, 613E, 613, and 612 satin bronze. The 612 satin bronze option is available on the 2196 but not on the 2153 conventional cylinder series. The 2160 cam is the factory-standard cam for the 2196 housing, providing the same cam engagement geometry as the conventional 2153 series in the same mortise lock bodies.

The IC core is not included. Confirm the keyway designation and LFIC format compatibility before ordering. Also referenced as: dl 2196, 2196/6.
