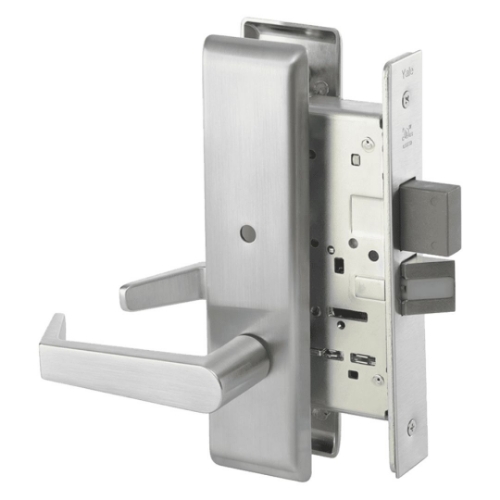

Accentra (Yale) AUCN8802FL Mortise Privacy Lever Lock, Augusta Lever

Accentra (Yale) AUCN8802FL Mortise Privacy Lever Lock, Augusta Lever

Privacy, bedroom or bath lock - ANSI F19

Latchbolt retracted by knob/lever either side.Deadbolt operated by thumbturn inside.When the deadbolt is projected, outside knob/lever isautomatically locked.Anti-panic operation. Operating inside knob/lever retractsthe latchbolt and deadbolt simultaneously, automatically unlocking outside knob/lever.In emergency, deadbolt may be unlocked from outside byE203 emergency key, supplied.

Handing: Yale mortise locksare field reversible. These locks can be converted to accommodate the hand of the door. However, to reduce installation costs, it is recommended that the hand of the door be specified for each lockset ordered.

Model: Accentra 8802FL / Yale 8802FL

Former Brand: Yale (now Accentra, ASSA ABLOY)

Series: 8800 Series Mortise Lock

Function: ANSI F19 - privacy, bedroom, or bath

Operation: Both levers retract latch; thumbturn inside projects deadbolt and auto-locks outside lever; inside lever retracts both latch and deadbolt simultaneously (anti-panic)

Deadbolt: 1" stainless steel throw

Latchbolt: 3/4" stainless steel, two-piece antifriction camming action

Emergency Access: E203 emergency key supplied standard

Indicator Option: IND suffix (outside only); VN/AUVN (inside and outside, with escutcheon)

Trim Formats: Sectional rose (R suffix), escutcheon (CN suffix)

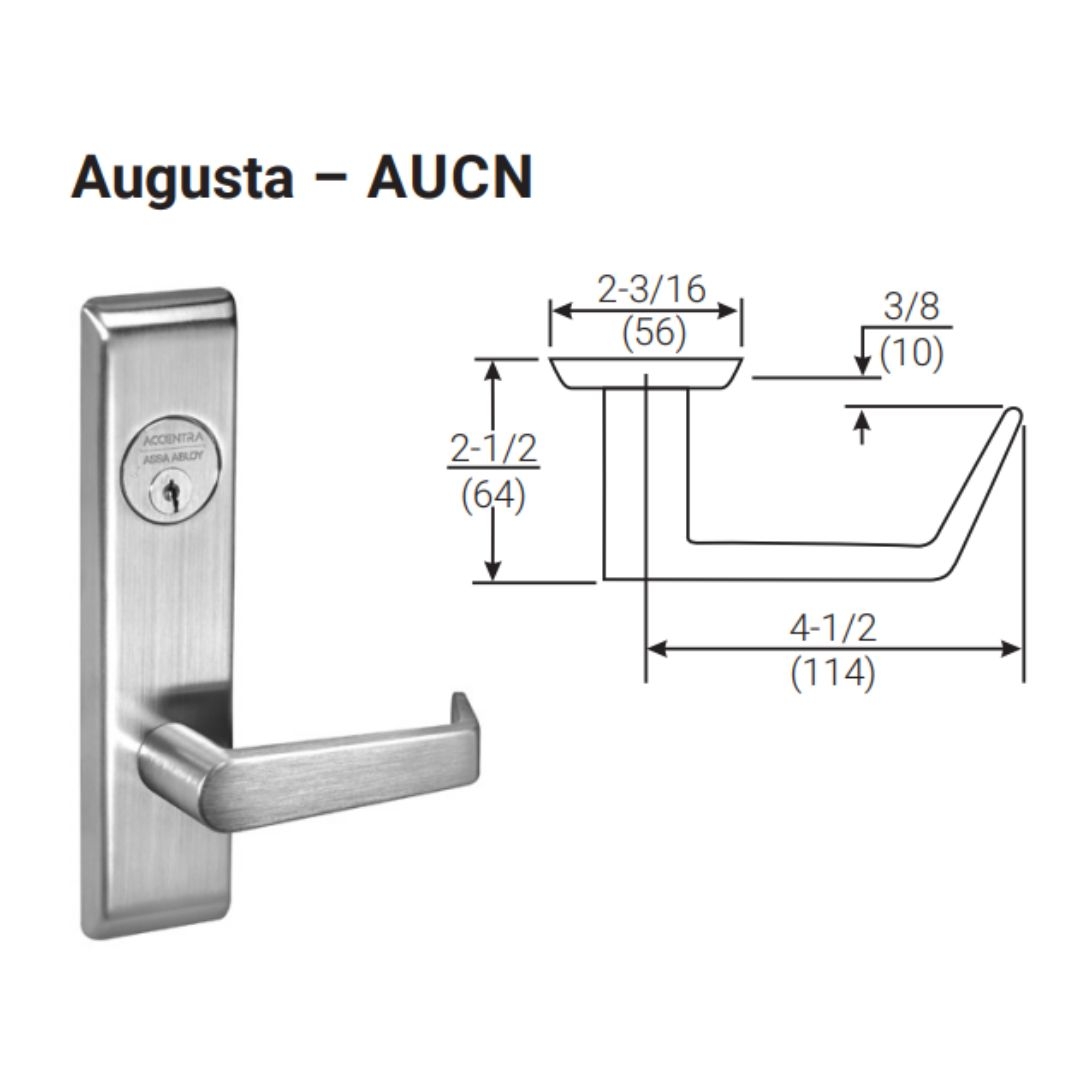

Lever Options: Augusta (AUR/AUCN)

Door Thickness: 1-3/4" standard; through 3-1/4" with standard trims

ANSI/BHMA: A156.13 Series 1000, Operational Grade 1; Security Grade 1 with CN escutcheon

ADA: Compliant - 8800FL meets ANSI 117.1 and UFAS

UL/cUL: 3-hour fire doors; 20-minute wood doors; single 4'x8', pairs 8'x8'

Federal: FF-H-106C

ISO: 9001

Warranty: 10-year mechanical

Door Prep: ANSI/BHMA A156.115 (steel); A156.115-W (wood) - same case prep as all 8800 Series functions

Model: 8802FL ARR, AUR, CRR, JNR, MOR, PBR, PNR, VIR, ZAUR, ZCRR, ZMOR, ZPBR, ARCN, AUCN, CRCN, JNCN, MOCN, PBCN, PNCN, VICN, ZAUCN, ZCRCN, ZMOCN, ZPBCN.

Certification/Compliance

A.D.A.The 8800FL meets accessibilityguidelines of the Americans withDisabilities Act and the requirementsof the Uniform Federal Accessibilitystandards and ANSI 117.1, all requiringease of accessibility for the handicapped.

ANSI: Certified ANSI/BHMA A156.13,Series 1000, Operational Grade 1(8800(FL) with CN escutcheon &SL8800 meet Security Grade 1).

Federal: Meets FF-H-106C.

UL /ULC: Listed by UnderwritersLaboratories Inc. for use on fire doorshaving a rating up to and including3 hours and for use on 20 minutewood doors. This pertains to singleswing doors not exceeding 4 feet inwidth and 8 feet in height and in doorsmounted in pairs not exceeding 8 feetin either direction

Model: 8802FL-ARR, 8802FL-AUR, 8802FL-CRR, 8802FL-JNR, 8802FL-MOR, 8802FL-PBR, 8802FL-PNR, 8802FL-VIR, 8802FL-ZAUR, 8802FL-ZCRR, 8802FL-ZMOR, 8802FL-ZPBR, 8802FL-ARCN, 8802FL-AUCN, 8802FL-CRCN, 8802FL-JNCN, 8802FL-MOCN, 8802FL-PBCN, 8802FL-PNCN, 8802FL-VICN, 8802FL-ZAUCN, 8802FL-ZCRCN, 8802FL-ZMOCN, 8802FL-ZPBCN.
