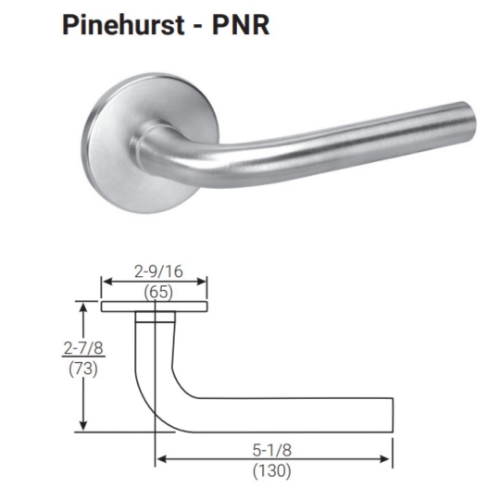

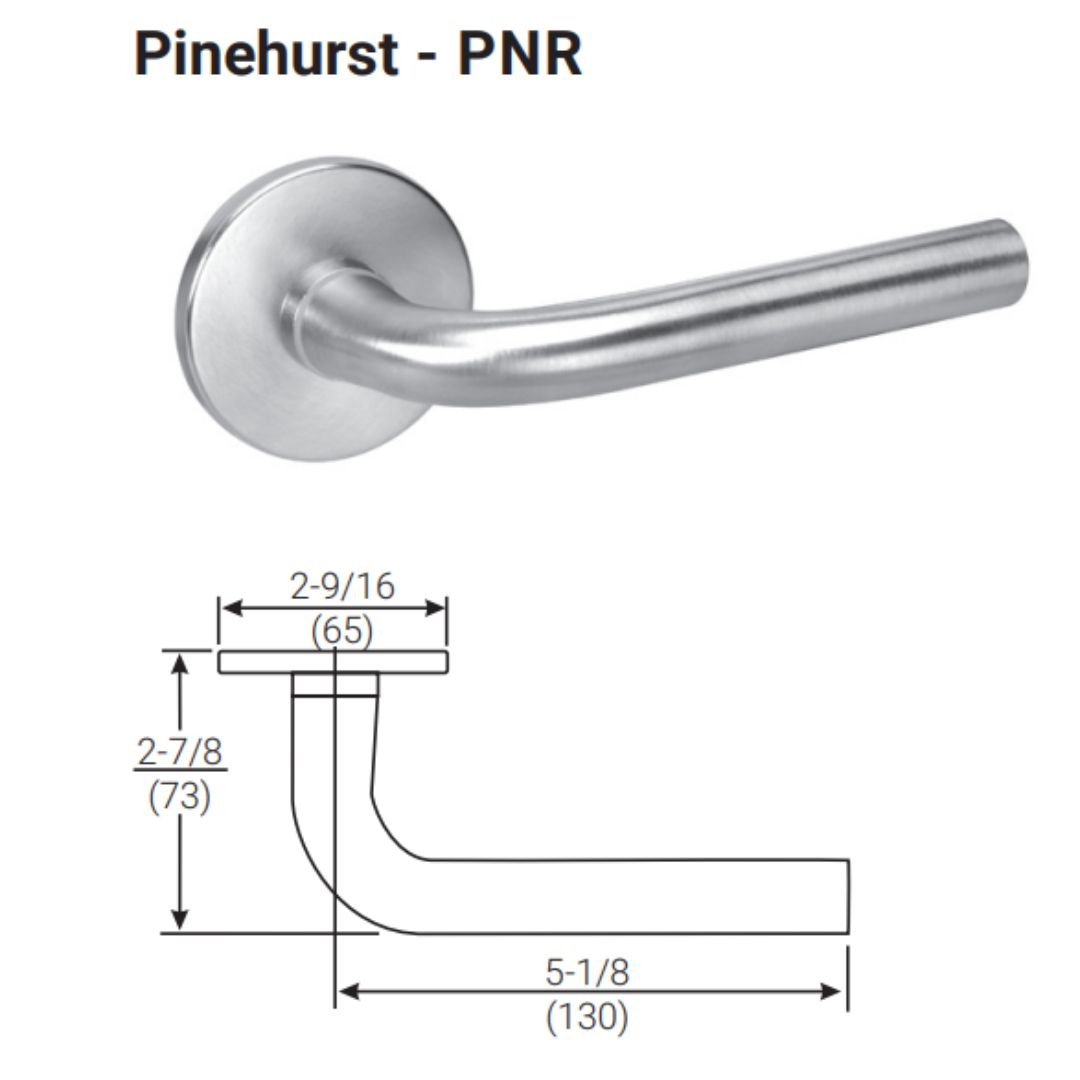

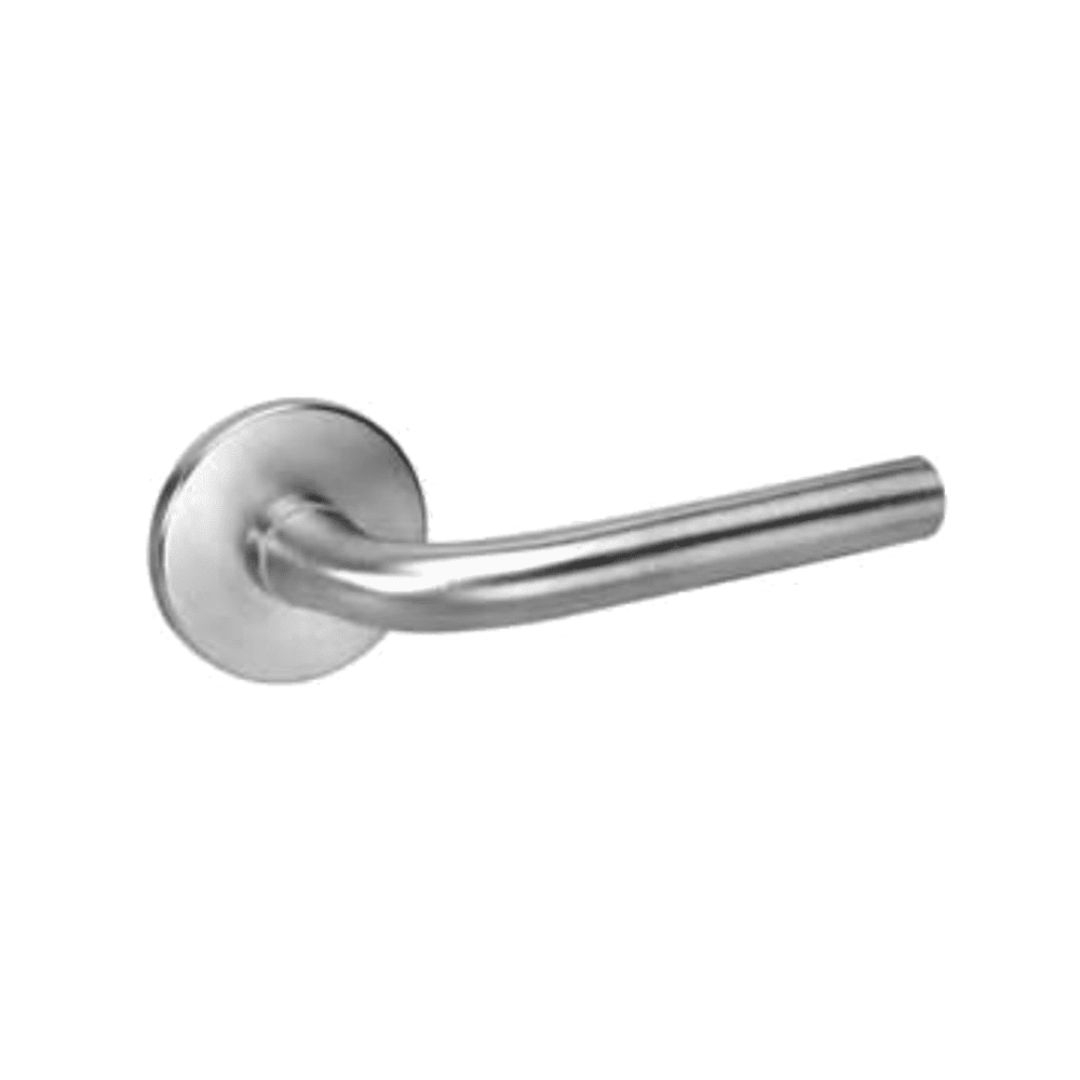

Accentra (Yale) PNR8823FL Mortise Storeroom Door Lever Lock, Pinehurst Lever

Accentra (Yale) PNR8823FL Mortise Storeroom Door Lever Lock, Pinehurst Lever

Storeroom lock Latchbolt retracted by knob/lever outside.Deadbolt operated by key outside.When deadbolt is projected, outside lever is automatically locked.No inside knob/lever or cylinder.

Handing: Yalemortise locksare field reversible. These lockscan be converted to accommodate thehand of the door. However, to reduceinstallation costs, it is recommendedthat the hand of the door be specifiedfor each lockset ordered.

Door Thickness: 1-3/4" (44mm) standard.

Backset: 2-3/4" (70mm).

Lockcase: Wrought steel, zinc dichromated, 5-1/16" (129mm) x 4-1/8" (105mm) x 1" (25mm).

Armor Front: 8" (203mm) x 1-1/4" (32mm)

Latchbolt: 3/4" throw, stainless steel two-piece anti-frictioncamming action.

Deadbolt: 1" throw, stainless steel with two enclosed hardenedsteelroller armor pins.

Hubs: 3/8" solid steel, fine-blanked and heat treated for additional strength.

Strike: Wrought brass, bronze or stainless steel, ANSI straight lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/4" (32mm) lip to center. Optional strikes, lip lengths and ANSI wrought strike box available

Cylinder: Brass, 6-pin. Optional cylinders available, 7-pin cylinder, Interchangeable core (IC)

Keys: Two nickel silver standard.

Keying Features Available: Master keying, Construction master keying

Warranty: Mechanical mortise locks (10) year warranty and Electrified mortise (2) year warranty.

Model: 8823FL-ARR, 8823FL-AUR, 8823FL-CRR, 8823FL-JNR, 8823FL-MOR, 8823FL-PBR, 8823FL-PNR, 8823FL-VIR, 8823FL-ZAUR, 8823FL-ZCRR, 8823FL-ZMOR, 8823FL-ZPBR, 8823FL-ARCN, 8823FL-AUCN, 8823FL-CRCN, 8823FL-JNCN, 8823FL-MOCN, 8823FL-PBCN, 8823FL-PNCN, 8823FL-VICN, 8823FL-ZAUCN, 8823FL-ZCRCN, 8823FL-ZMOCN, 8823FL-ZPBCN.

Certification/Compliance

A.D.A.The 8800FL meets accessibilityguidelines of the Americans withDisabilities Act and the requirementsof the Uniform Federal Accessibilitystandards and ANSI 117.1, all requiringease of accessibility for the handicapped.

ANSI: Certified ANSI/BHMA A156.13,Series 1000, Operational Grade 1(8800(FL) with CN escutcheon &SL8800 meet Security Grade 1).

Federal: Meets FF-H-106C.

UL /ULC: Listed by UnderwritersLaboratories Inc. for use on fire doorshaving a rating up to and including3 hours and for use on 20 minutewood doors. This pertains to singleswing doors not exceeding 4 feet inwidth and 8 feet in height and in doorsmounted in pairs not exceeding 8 feetin either direction
