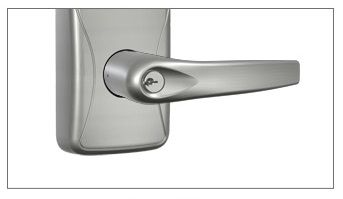

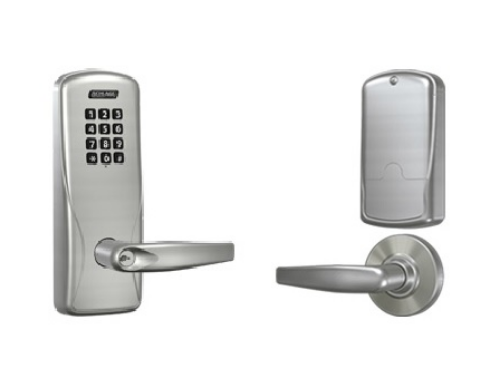

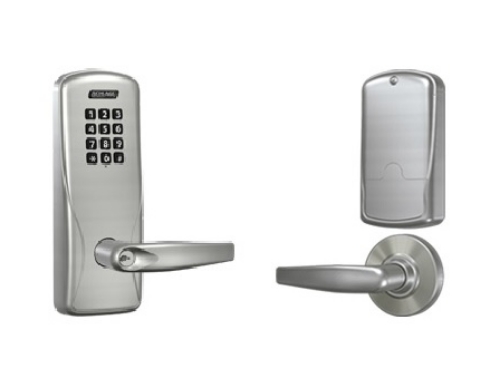

Schlage CO-100-CY-70-KP-ATH-626 Electronic Lock - Athens Lever - Satin Chrome

Schlage CO-100-CY-70-KP-ATH-626 Electronic Classroom  / Storeroom Lock - Athens Lever - Satin ChromeLever Style - Athens

**

**Classroom /Storeroom Function (70)

**In a classroom application a toggle credential can be used to put the lock into alockedorunlockedstate

The state of the lock cannot be changed from the interior

In a storeroom application the lock unlocks when a credential is presented and relocks automatically**

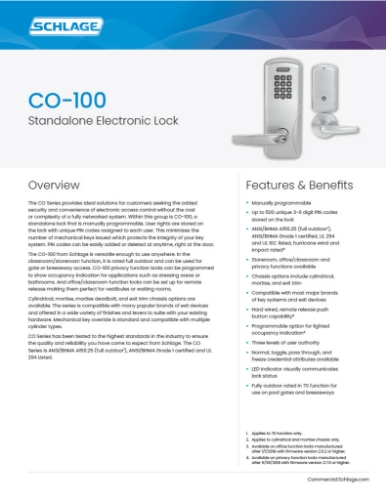

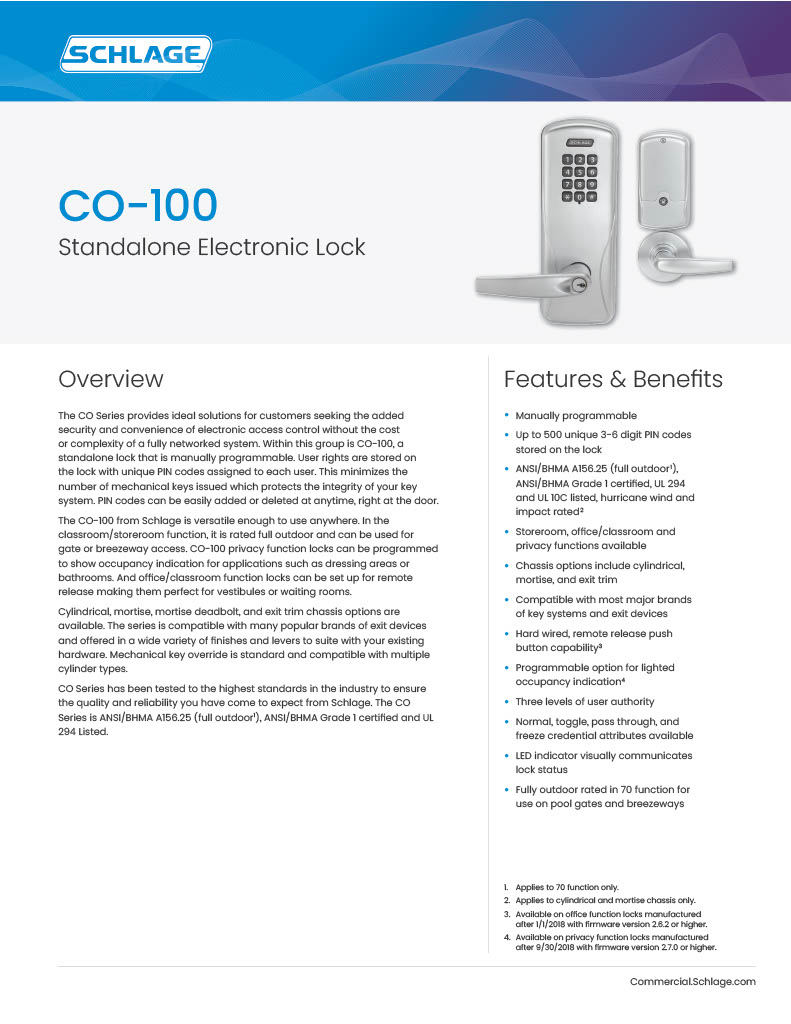

The CO-100 is a standalone lock that is manually programmable. User rights for the CO-100 are stored on the lock.*Unique PIN codes can be assigned to each user.*This minimizes the number of mechanical keys issued which protects the integrity of your key system. PIN codes can be easily added or deleted at anytime right at the door.

Manually Programmable

**12 button keypad

Up to 500 unique 3-6 digit PIN codes stored on the lock**

Normal, toggle, pass through, and freeze credential attributes available

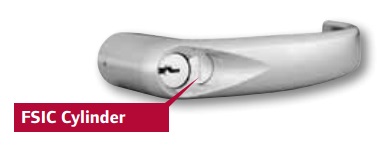

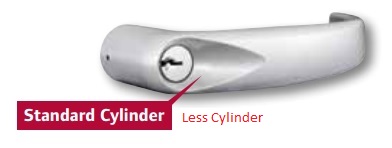

Mechanical key override is standard and compatible with multiple cylinder types

**Power Supply: 4 AA batteries (standard off the shelf: included)

Battery Life: Up to 2 yrs with 4 AA batteries

Operating Temperature: Exterior -31to 151 Degree F (-35to 66 Degree C) - Interior 32to 120 Degree F (0to 49 Degree C) due to battery

Operating Humidity: 0 - 100% non-condensing**

ANSI/BHMA A156.25, ANSI/BHMA Grade 1 certified and UL 294 listed**

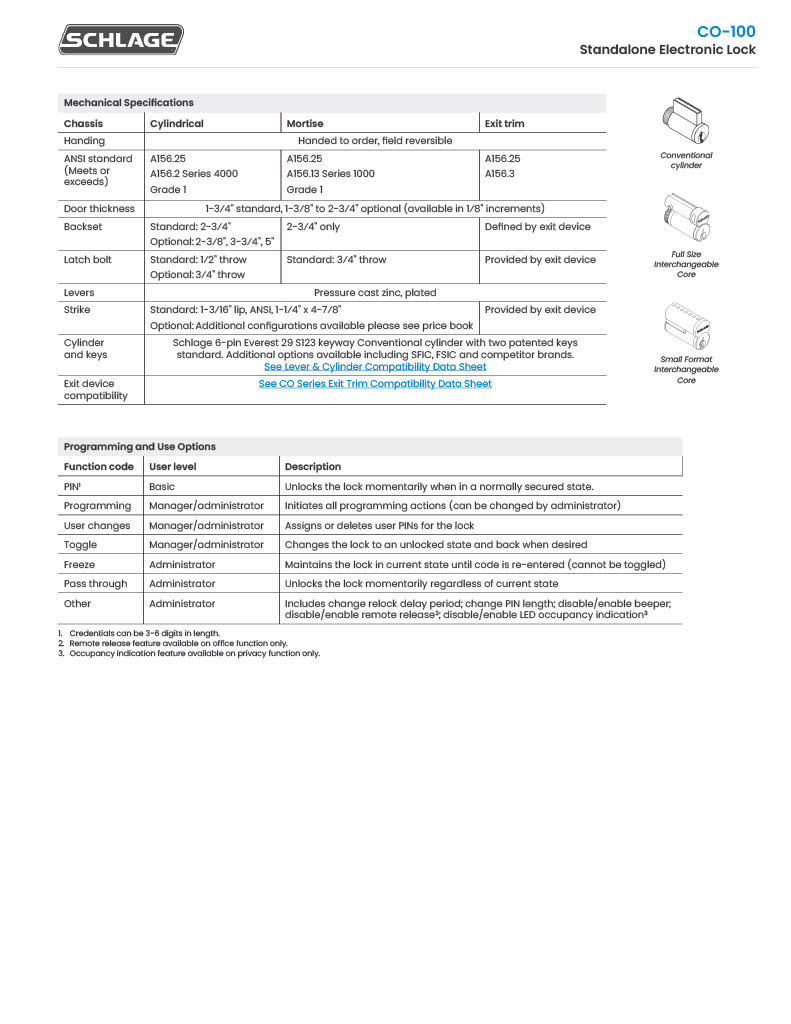

*Door Thickness:1-3/4standard, 1-3/8to 2-3/4optional (available in 1/8increments)*

*Backset:2-3/4˝ standard, 2-3/8˝, 3-3/4˝ and 5˝ optional*

*Latch Bolt:1/2˝ throw security latch standard 3/4throw optional*

*Levers:Pressure cast zinc, plated to match finish symbols*

*Strike:ANSI curved lip strike 1-1/4˝ x 4-7/8˝ x 1-3/16˝ lip  to center standard, optional strikes, lip lengths and  ANSI strike box available*

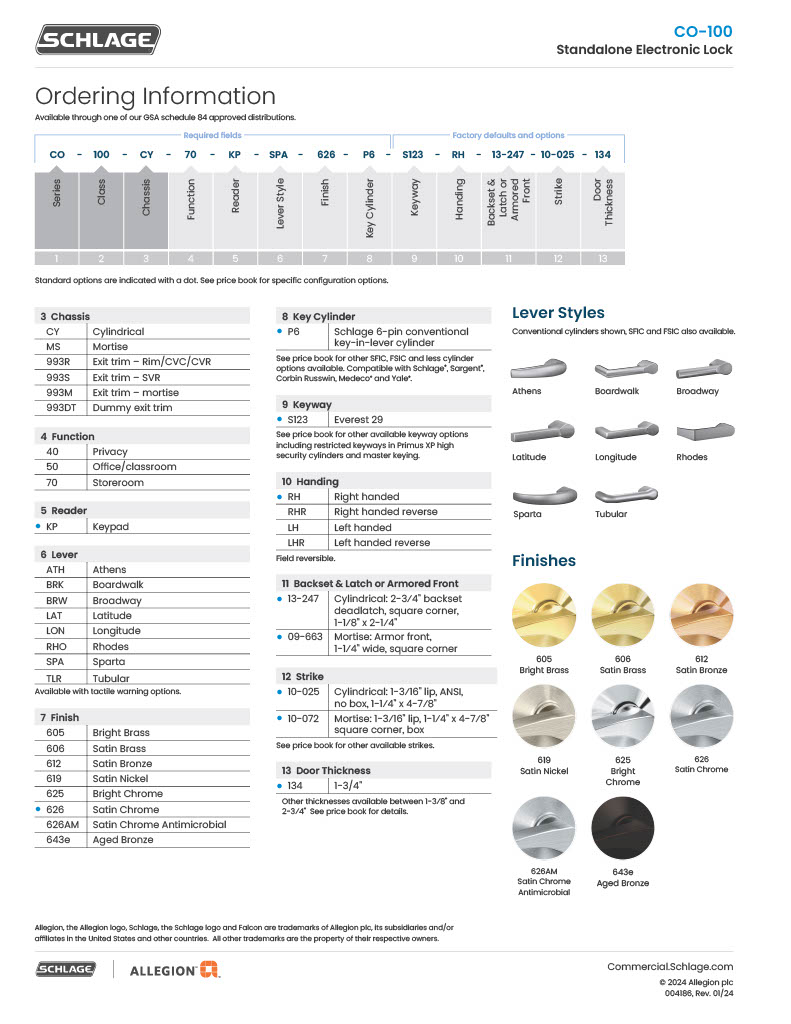

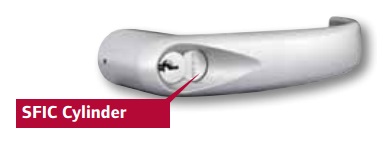

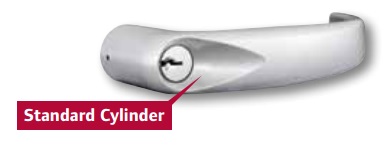

Model:SchlageCO100CY70KPATH626PD, CO100CY70KPATH626BD, CO100CY70KPATH626JD, CO100CY70KPATH626LD

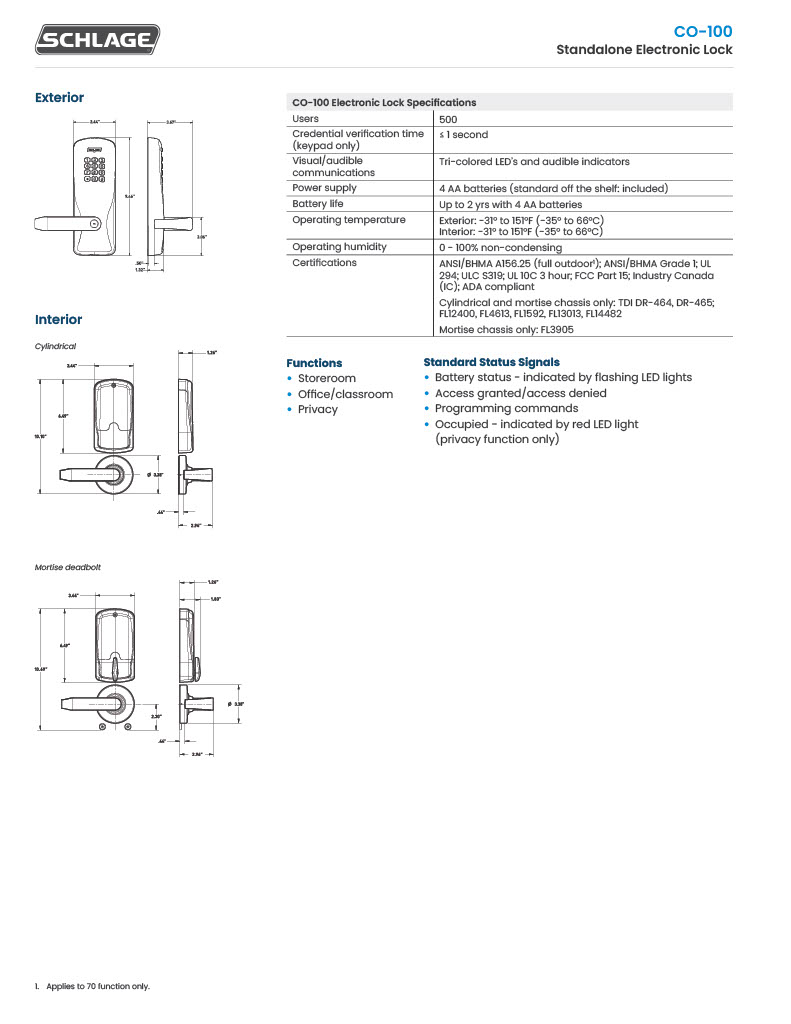

Users: 500

Credential Verification Time: ≤ 1 second

Visual/Audible Communications Tri-colored LEDs & audible indicators

Power Supply: 4 AA batteries (standard off the shelf: included)

Battery Life: Up to 2 yrs with 4 AA batteries, Battery Status - indicated by blinking lights

Operating Temperature - Exterior -31 Degree to 151 Degree F (-35 Degree to 66 Degree C)

Operating Temperature - Interior 32 Degree to 120 Degree F (0 Degree to 49 Degree C) due to battery

Operating Humidity: 0 - 100% non-condensing

Certifications: ANSI/BHMA A156.25, ANSI/BHMA Grade 1, UL 294, UL 10 C, FCC Part 15, ADA and RoHS
