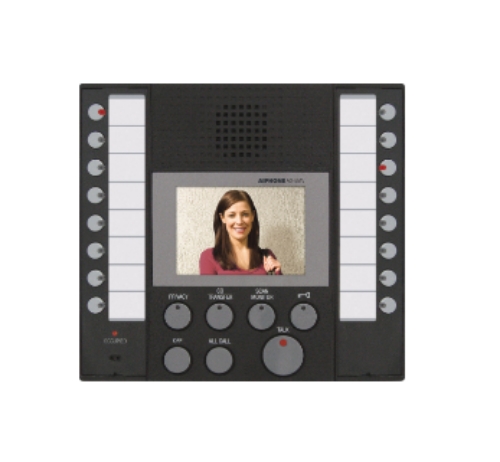

Aiphone AX-8MV Audio Video Master Station For AX Series

Aiphone AX-8MV Audio Video Master Station For AX Series

Description:

the AX-8MV master station is a centerpiece of the AX integrated audio and video security system.

Each AX-8Mv master station can initiate and answer calls from up to 7Additional master stations and up to 8 door or sub stations. The Master can be expanded with AX-16SW add-on selectors for a maximum capacity of 120 door/sub stations. its streamline design is mountable on a wall or desk.

When a video door station calls,a tremolo tone rings And the 3.5" color monitor comes on, displaying the image from the door station location. To answer the call simply press the TALK button once and speak hands free, or press and hold the talk button to use as push-to-talk, release to listen. If access control is included, simply press the "key" button and the associated electric strike or megnetic lock will be activated.

Each master station connects via CAT-5e cable homerun to the AX central exchange unit. Feature and operation variables are set with the system set-up software and uploaded to the CEU.

Features:

3.5"TFT color video monitor

8 Master station channels

8 Door/sub station channels

Led and call tone annunciation for programmable length or infinite call-in

Hands -free VOX communication or push-to-talk

All call to other master stations

Selective calling to any station in the system

 Add-on selectors in increments of 16 channels for max. Capacity of 120 door/sub stations

Privacy prevents other masters from listening in

CO transfer allows calls to transfer to a telephone number

Scan monitor allows listening to door/sub stations in programmed ime increments

Door release button activates door strike or magnetic lock

3.5mm speaker and mic jacks for computer-style handset connection

tone and volume adjustments for open voice and headset communication

Brightness and contrast adjustments for video

Option connector for call extension or footswitch operation of talk function
