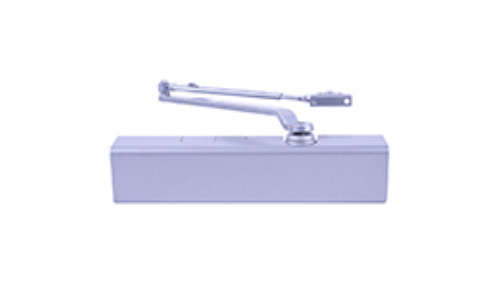

Arrow 5016N Door Closer, Tri-Packed (Regular, Parallel & Top Jamb Mount), Size 1-6, Full Plastic Cover

Arrow 5016N Door Closer, Tri-Packed (Regular, Parallel & Top Jamb Mount), Size 1-6, Full Plastic Cover

Product Details

Arrow 5016N Door Closer, Tri-Packed (Regular, Parallel & Top Jamb Mount), Size 1-6, Full Plastic Cover

Sizes (Adjustable): 5016N closers are adjustable for spring sizes 1 through 6, Standard Arm or Hold Open Arm.

Features:

Cast aluminum body.

Hardened steel rack and pinion.

High tensile steel springs.

Staked valves.

Two non-critical adjusting valves (sweep and latch) control closing speed.

Backcheck intensity valve.

All temperature fluid.

Available with a full plastic cover or a slim plastic cover (specify S suffix).

Non-handed for regular, top jamb and parallel armmount applications.

Hold open armavailable on adjustable closers.

Available with optional delayed action adjustedwith separate independent valve. Delays door closing to allow unimpeded passage through the opening. Specify "D" suffix.

Supplied with machine screws, fully threaded self-reaming/tapping screws, sleeve nuts and thru-bolts for 1-3/4" thick doors.

10 year limited warranty.

Certification: UL/cUL listed. UL10C listed for positive pressure to comply with UBC-72 (1997). Meets the requirements of ANSI A156.4 and ANSI ICC A117.1.

ADA/Americans with Disabilities Act: Meets ADA requirements (Americans with Disablities Act).

Model:Arrow 5016N, 5016N Arrow, 5016NH 5016NH Arrow, Arrow 5016NH

Arrow 5016N Door Closer, Tri-Packed (Regular, Parallel & Top Jamb Mount), Size 1-6, Full Plastic Cover

Name: Arrow 5016N Door Closer, Tri-Packed (Regular, Parallel & Top Jamb Mount), Size 1-6, Full Plastic Cover
SKU: 5016N
Price: 302.40 USD
Availability: InStock

SKU: 5016N

In Stock

Chat

$302.40

About this item

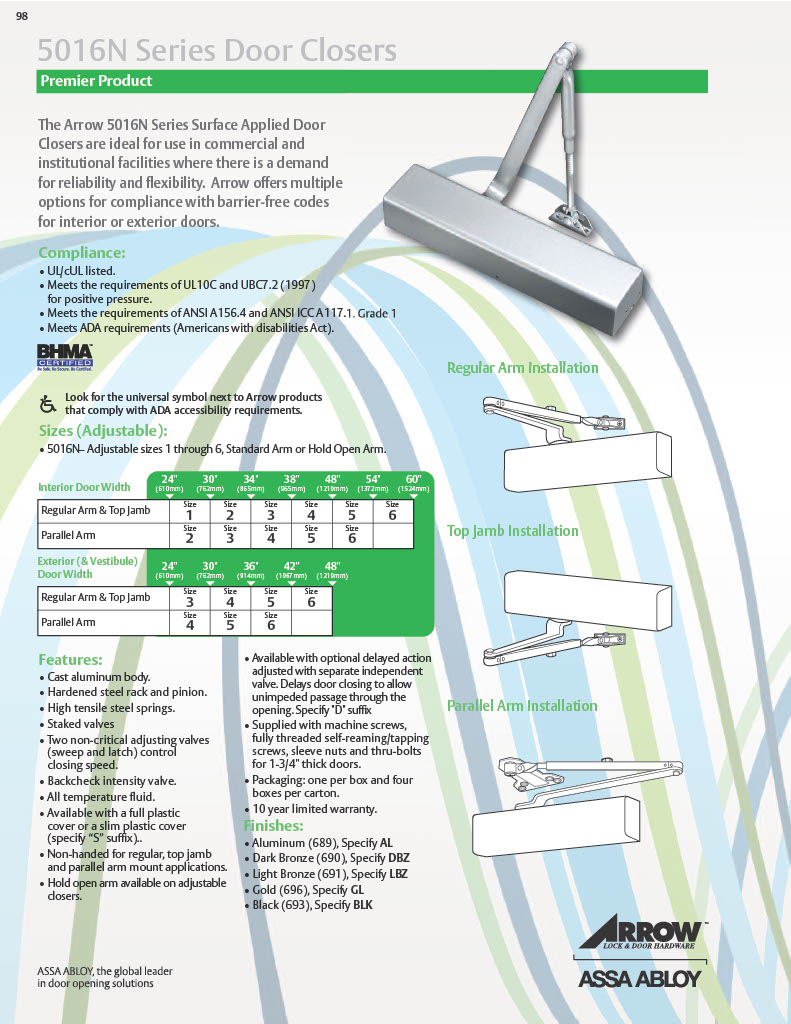

The Arrow 5016N Series Surface Applied Door Closers are ideal for use in commercial and institutional facilities where there is a demand for reliability and flexibility. Arrow offers multiple options for compliance with barrier-free codes for interior or exterior doors.

Resources

https://www.arrowlock.com/en/site/arrowlock/products/closers/5016n/

Arrow 5016N Door Closer, Tri-Packed (Regular, Parallel & Top Jamb Mount), Size 1-6, Full Plastic Cover

Sizes (Adjustable): 5016N closers are adjustable for spring sizes 1 through 6, Standard Arm or Hold Open Arm.

Features:

Cast aluminum body.

Hardened steel rack and pinion.

High tensile steel springs.

Staked valves.

Two non-critical adjusting valves (sweep and latch) control closing speed.

Backcheck intensity valve.

All temperature fluid.

Available with a full plastic cover or a slim plastic cover (specify S suffix).

Non-handed for regular, top jamb and parallel armmount applications.

Hold open armavailable on adjustable closers.

Available with optional delayed action adjustedwith separate independent valve. Delays door closing to allow unimpeded passage through the opening. Specify "D" suffix.

Supplied with machine screws, fully threaded self-reaming/tapping screws, sleeve nuts and thru-bolts for 1-3/4" thick doors.

10 year limited warranty.

Certification: UL/cUL listed. UL10C listed for positive pressure to comply with UBC-72 (1997). Meets the requirements of ANSI A156.4 and ANSI ICC A117.1.

ADA/Americans with Disabilities Act: Meets ADA requirements (Americans with Disablities Act).

Model:Arrow 5016N, 5016N Arrow, 5016NH 5016NH Arrow, Arrow 5016NH

Arrow 5016N Door Closer, Tri-Packed (Regular, Parallel & Top Jamb Mount), Size 1-6, Full Plastic Cover

Product code: 5016N

In Stock

$302.40

Arrow 5016N Door Closer, Tri-Packed (Regular, Parallel & Top Jamb Mount), Size 1-6, Full Plastic Cover

Product code: 5016N

In Stock

$302.40

Arrow 5016N Door Closer, Tri-Packed (Regular, Parallel & Top Jamb Mount), Size 1-6, Full Plastic Cover

SKU: 5016N
