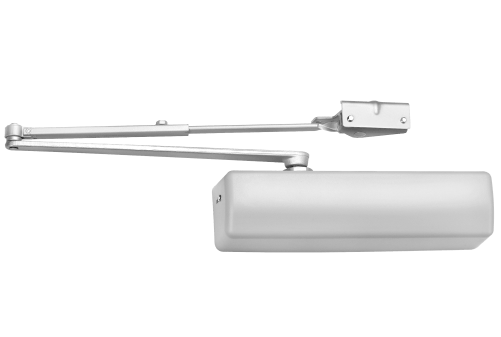

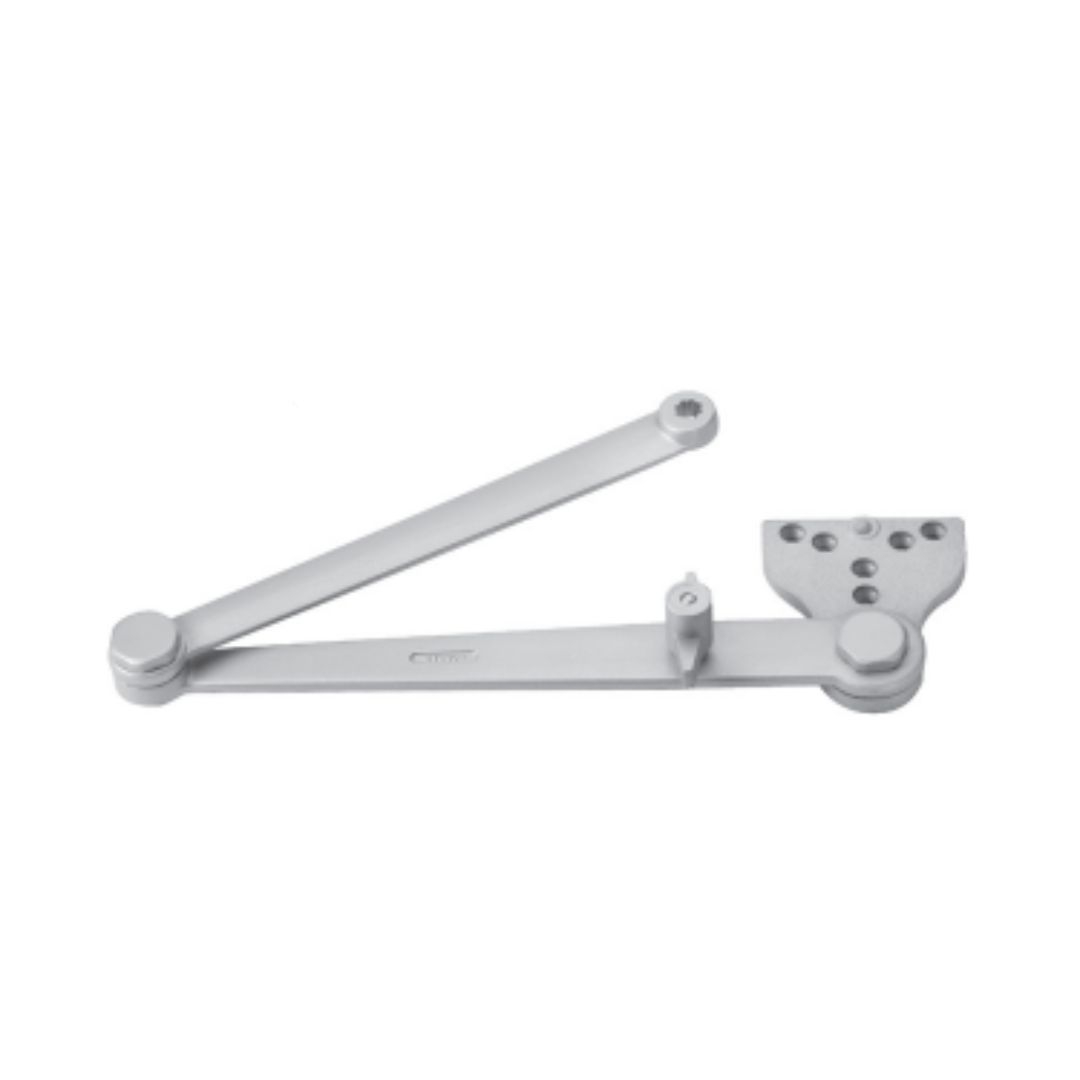

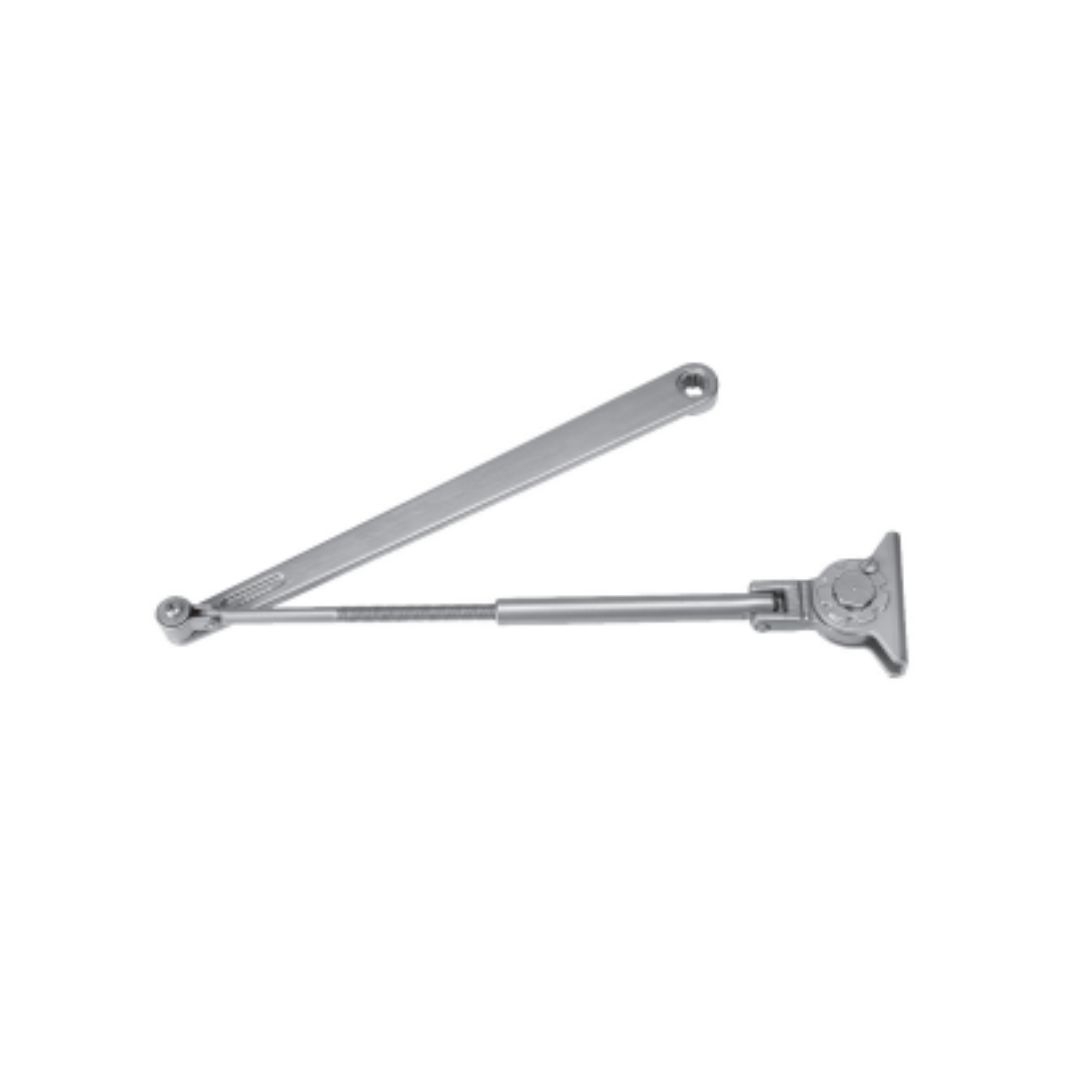

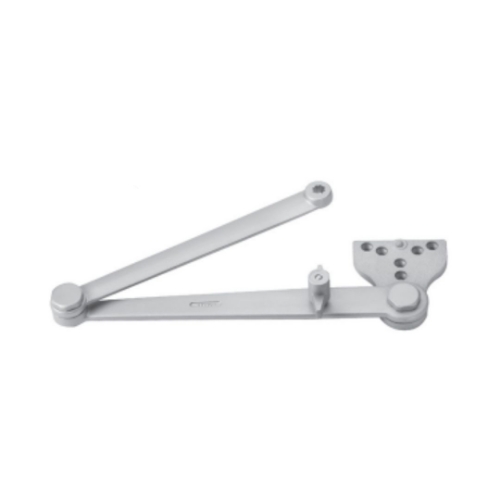

Corbin Russwin DC3210 689 M54 Grade 1 Surface Door Closer, Aluminum Painted

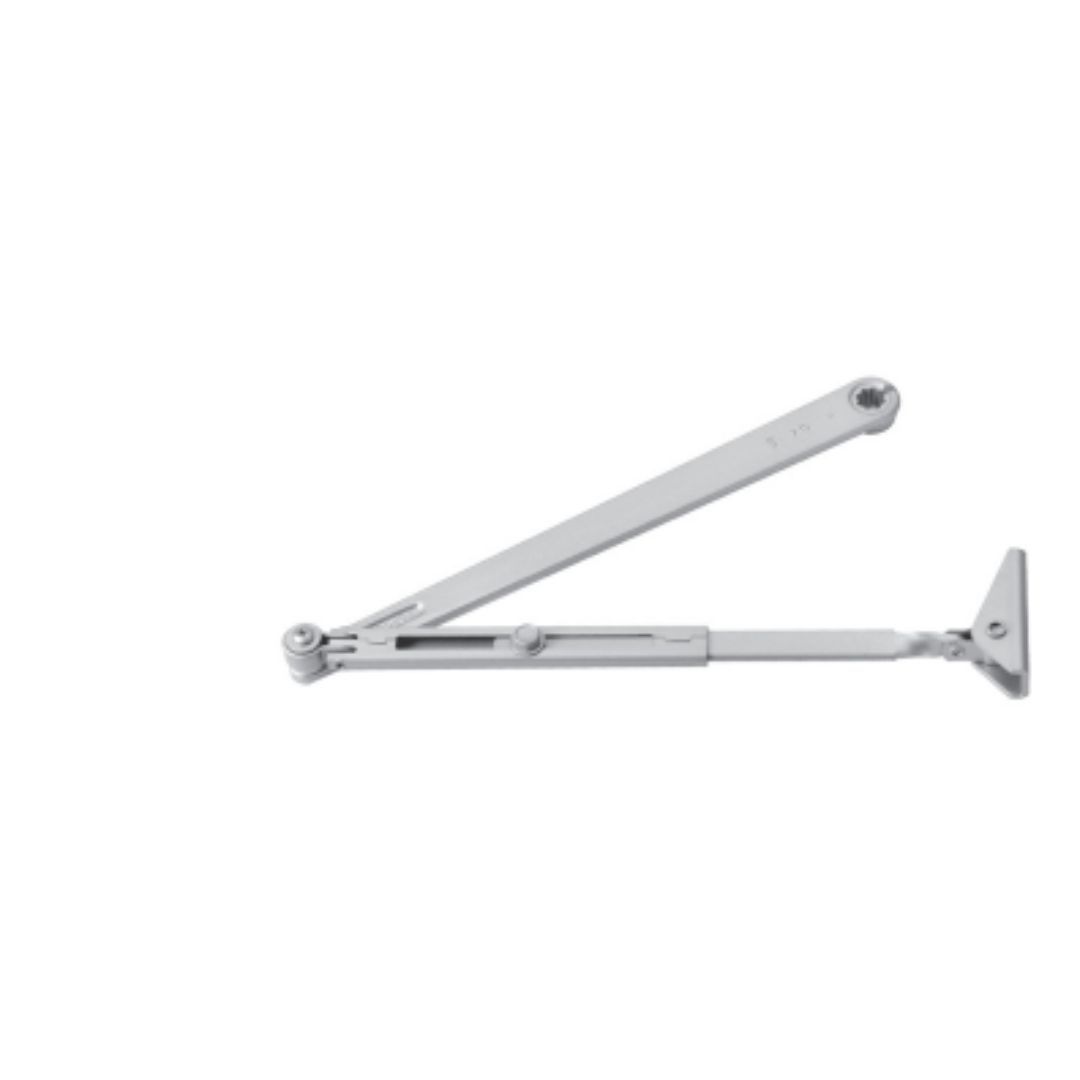

Corbin Russwin DC3210 689 M54 DC3210 689 M54 Grade 1 Surface Door Closer, Double Lever Arm with PA Bracket, Push or Pull Side Mount, Size 1 to 6, Full Cover, Non-Handed, Aluminum Painted Universal Quik-Installmounting bracket standard.

Reduces installation time Ensures correct mounting

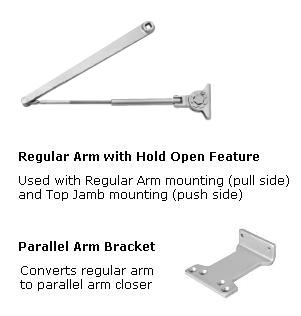

Bracket is first mounted to door or frame, then closer is attached

Bracket size: 1-3/4" (44mm) (vertical) x 6" (152mm) (horizontal)

Hole spacing: 1" (25mm) (vertical) x 4-5/16" (110mm) (horizontal)

Features

Spring Power: Multi-sized; fully adjustable 1 through 6.

Handing: Non-handed.

Valves: Latching speed, closing speed and backcheck intensity valves standard. Delayed action valve optional (preset for 20 seconds; between 90 deg. and 70 deg. for all mountings.) specify M71.

Degree of Opening: Up to full 180 opening standard for regular, top jamb and parallel arm mountings, conditions permitting.

Power Adjustment Arm Bracket: 15% adjustment standard.

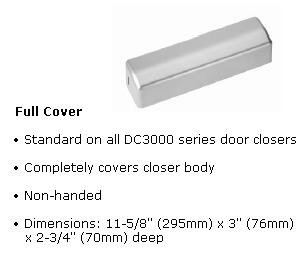

Cover:

Standard: Non-metallic full cover.

Optional: Slim cover; Specify M76.

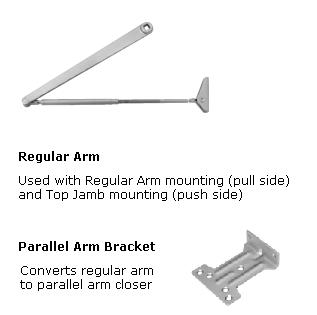

Mountings: Tri-packed DC3210 comes with screws, brackets and soffit plates to allow for regular, top jamband parallel arm installations.

Fasteners:

Standard: Self-drilling screws.

Optional: Sex nuts and bolts (SNBs); Specify M54.

Warranty: 15 year limited warrant.

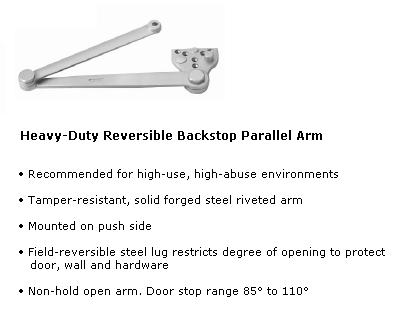

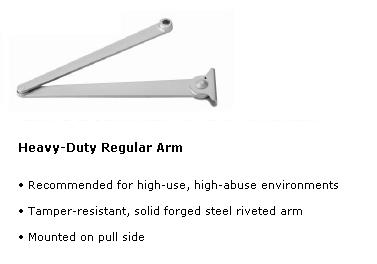

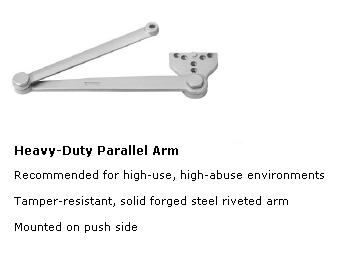

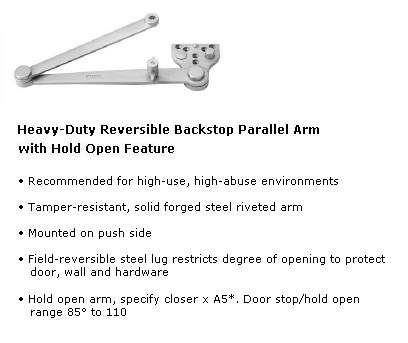

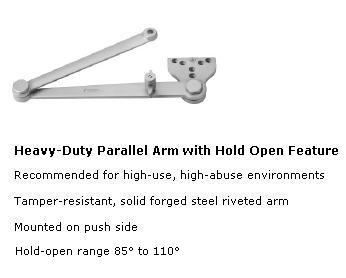

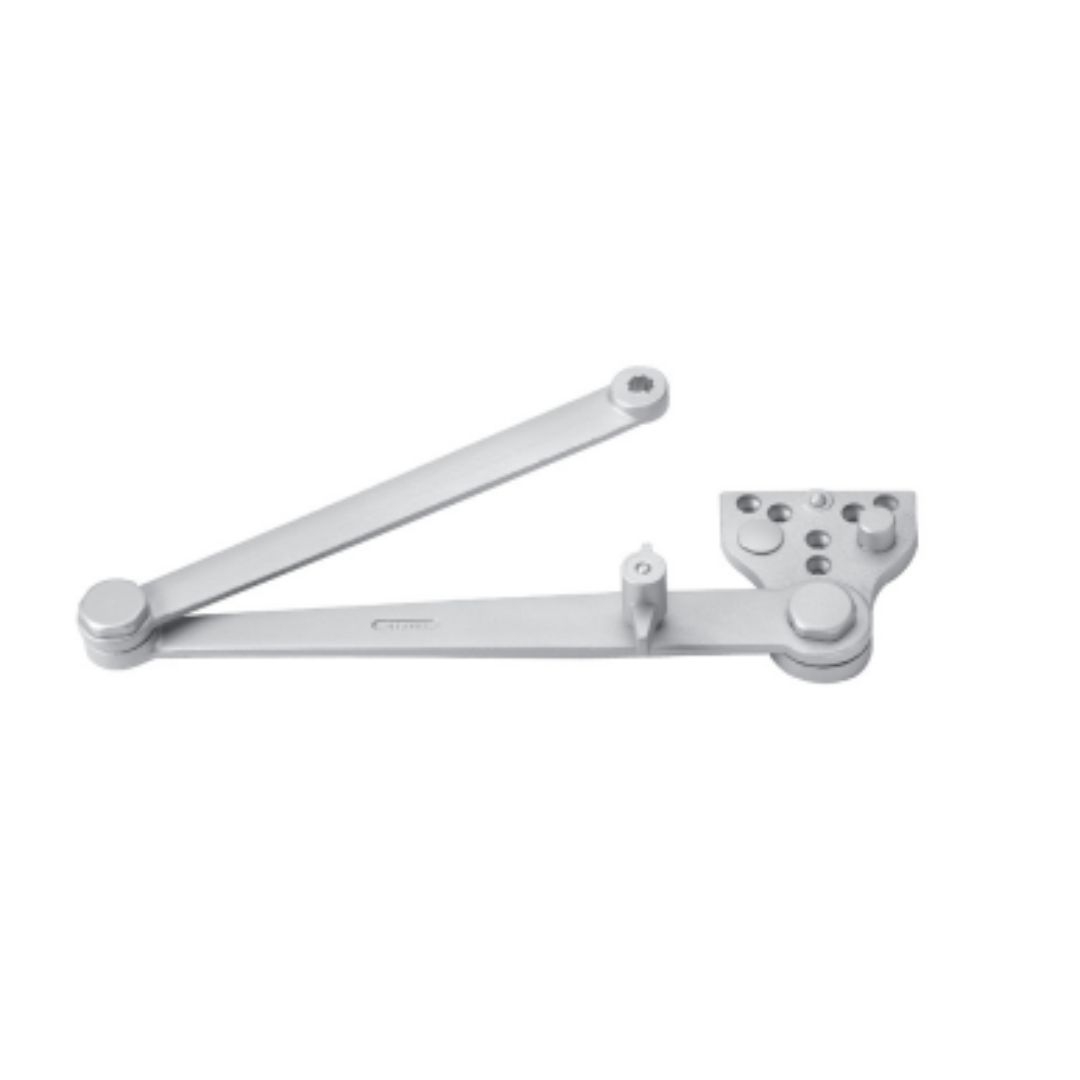

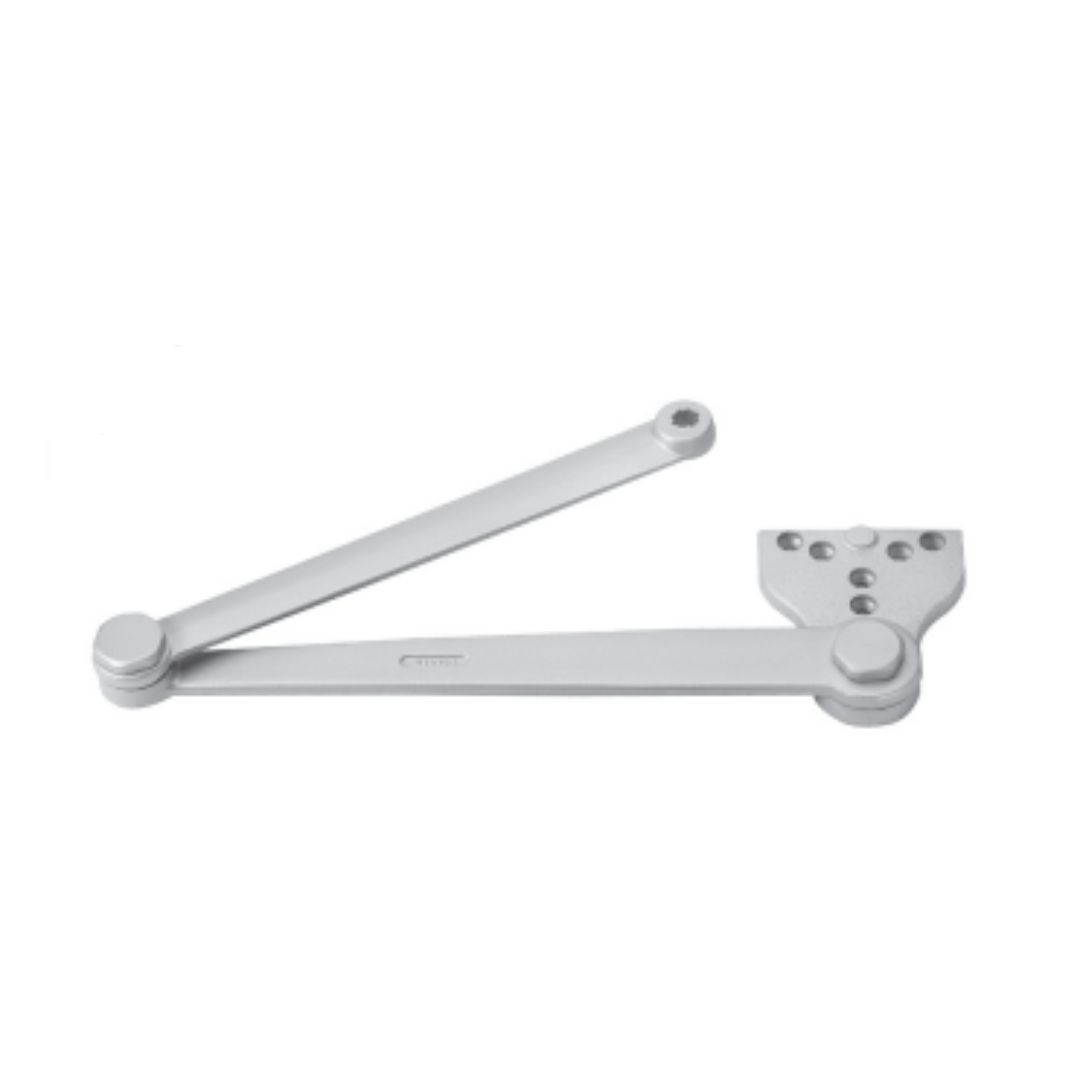

MODELS: DC3210, CORBIN RUSSWIN DC3210, DC3210 CORBIN RUSSWIN, CORBINRUSSWINDC3210, DC3210CORBINRUSSWIN, CORBIN DC3210, DC3210 CORBIN, CORBINDC3210, DC3210CORBIN, DC3210 689, DC3210 A1 689, DC3210 A2 689, DC3210 A3 689, DC3210 A5 689, DC3210 A4 689, DC3210 A10 689, DC3210 689 M54, DC3210 689, DC3210 A1 689, DC3210 689 M82,

Body: Cast iron case with seamless cold-headed steel spring tube.

Arm: Standard: forged steel.

Spindle: Cold-headed heat-treated steel.

Piston: 1-3/8" diameter; Precision machined, heattreated steel.

Springs: Chrome silicon wire.

Seals: "O" rings.

Fluid: Standard high lubricity extreme temperature hydraulic fluid.

Certification/Compliance

Barrier-Free Code Compliance: The DC3000 Series Door Closers listed below conform to the 5 lbf. maximum door opening force requirement for non-fire-rated interior hinged doors, according to:

Americans with Disabilities Act (ADA): Complies with the Accessibility Guidelines for Buildings and Facilities, Section 4.13.11.

ANSI/BHMA Certified: A156.4, Grade 1. A117.1.

UL / ULC / UL10C: Listed for fire and cycle requirements.
