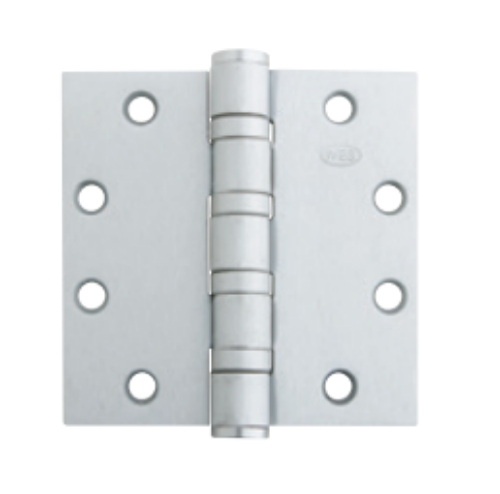

Ives 5BB1 HW 4-1/2" x 4-1/2" NRP Full Mortise Hinge - Five Knuckle - Ball Bearing - Non-removable Pin - Heavy Weight

The Ives 5BB1HW NRP is the heavyweight, non-removable pin version in the Ives 5BB ball bearing commercial hinge series. Four specifications in the model name, each addressing a different installation requirement: five knuckle barrel for commercial door duty, 0.180-inch heavy gauge leaf for heavy or high-cycle doors, four ball bearings for low-friction high-frequency operation, and a non-removable pin for security on doors where the hinge barrel is accessible from the unsecured side.

The non-removable pin is the specification that separates this hinge from the standard 5BB1HW. On an outswing door, the hinge knuckles are on the exterior face of the door, which means anyone outside the building can see and reach the hinge barrel. Standard removable pins can be driven upward out of the barrel with a punch and hammer in under a minute, allowing the door leaf to be lifted away from the frame regardless of what the lock is doing. The NRP pin cannot be driven out while the door is in the frame. The pin's geometry prevents upward movement when the hinge leaves are assembled and the door is hanging. For exterior outswing doors, security doors, and any door where the hinges are visible from the non-secure side, the NRP version is the correct specification. For all Ives door hinges, browse our door hinges catalog.

Heavy Weight vs Standard Weight in the 5BB1 Series

The standard weight 5BB1 uses 0.134-inch gauge metal. The 5BB1HW (this product) uses a 0.180-inch gauge. Both are five-knuckle full mortise ball bearing hinges in the same series. The 0.180 gauge adds 34 percent more metal in the hinge leaf, which increases rigidity, reduces flex under sustained door weight, and extends service life on heavy doors and high-frequency openings. Solid wood doors over 1-3/4 inches thick, heavy aluminum and glass doors, and institutional entrances that cycle hundreds of times daily are the correct applications for the heavyweight version. Standard weight works on most interior commercial hollow metal and wood doors.

5BB1 Model Designation Guide

The Ives 5BB Series uses suffix codes that tell you exactly what's in the hinge before you open the package.

5BB1 = base model, five-knuckle, ball bearing, standard weight, removable pin. 5BB1 NRP = same as above with non-removable pin. 5BB1 HW = heavyweight (0.180"), removable pin. 5BB1HW NRP (this product) = heavy weight with non-removable pin. 5BB1 SH = standard weight with security stud. 5BB1 HW SH NRP = heavy weight, security stud, non-removable pin. 5BB1 HT = hospital tip.

Each suffix is additive. Read the model code and you know the full specification without consulting a catalog.

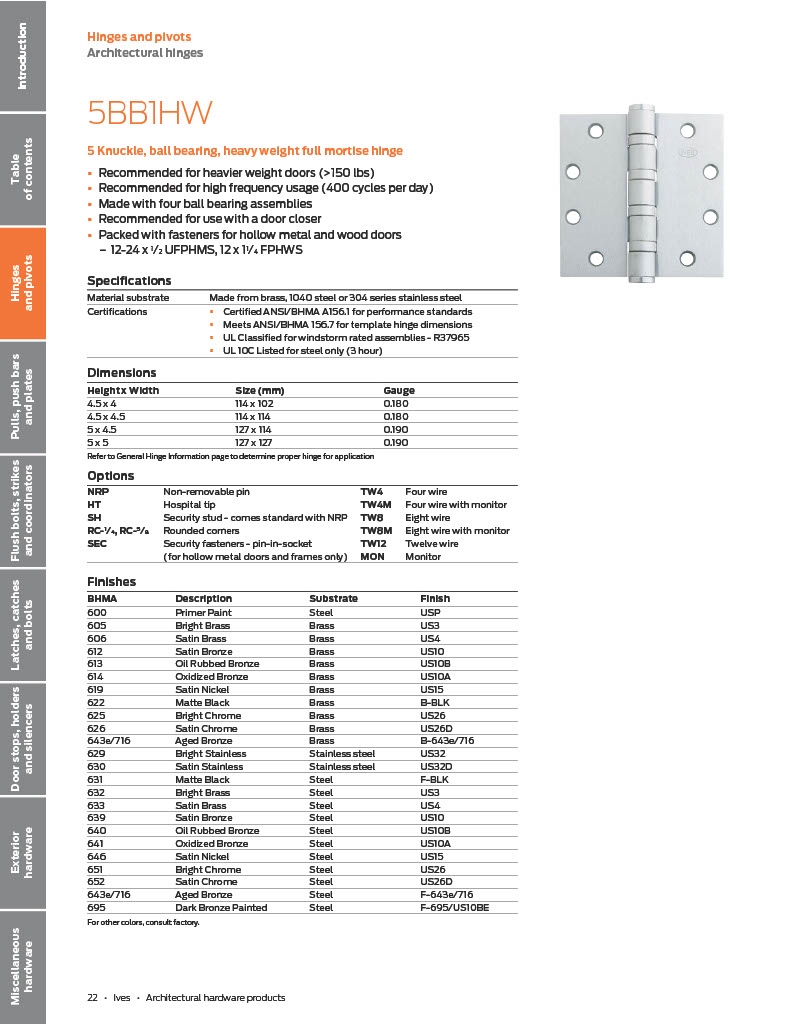

Ives 5BB1HW NRP Full Specifications

• SKU: 5BB1HW4545NRP 652

• Also known as: 5BB1HWNRP, Ives 5BB1HW, ives 5bb1hw, 5bb1hw, ives 5bb series, 5BB1HW4545NRP

• Series: Ives 5BB, Five Knuckle Ball Bearing

• Weight class: Heavy Weight (HW)

• Gauge: 0.180"

• Pin type: NRP, Non-Removable

• Bearings: 4 ball bearings

• Knuckles: Five

• Type: Full mortise

• Application: Heavy weight doors; high-frequency usage; outswing and exterior security doors

• Size: 4-1/2" x 4-1/2" (114 x 114 mm)

• Materials: Steel base standard; Brass/Bronze also available

• ANSI: A156.1 A8112 (Steel); A5112 (Stainless Steel); A2112 (Brass)

• Screws included: Wood and machine screws

• Sold: Individually

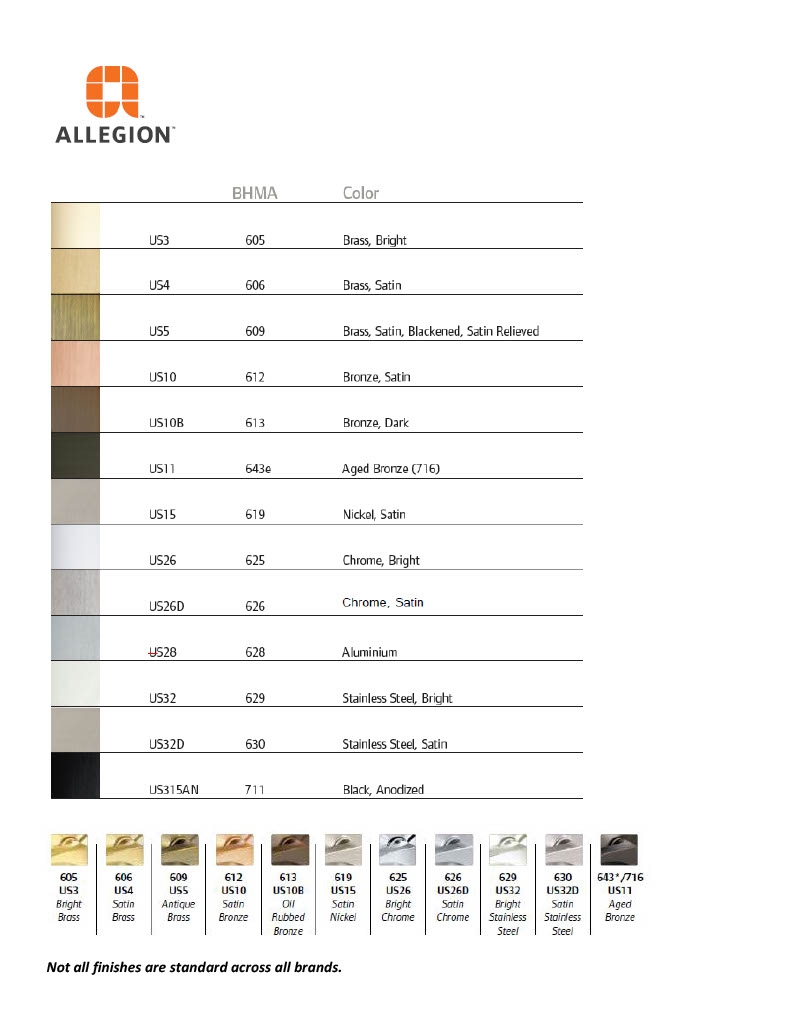

• Finishes: 652 Satin Chrome Steel, 630 Satin Stainless, 626 Satin Chrome Brass/Bronze, 633 Satin Brass Steel, 632 Bright Brass Steel, 640 Dark Bronze Oil Rubbed, F-BLK Matte Black Steel, B-BLK Matte Black Brass/Bronze, 625 Bright Chrome
