Kaba Mas 521025/521031, CDX-10 High Security Lock, Non Drill Resistant Mounting Plate, Strike Type 2

The Kaba MAS CDX-10 is a Federal Specification FF-L-2740B high security lock assembly for pedestrian doors, combining the X-10 electronic combination lock with a deadbolt base plate that surface-mounts to the inside face of the door. The CDX-10 assembly is manufactured per Federal Specification FF-L-2890A. It is self-powered by Kaba MAS's Green Rotational electromechanical PowerStar technology, requiring no batteries. This is the government and institutional standard for high-security pedestrian door applications including SCIFs, vaults, armories, data centers, and classified access facilities.

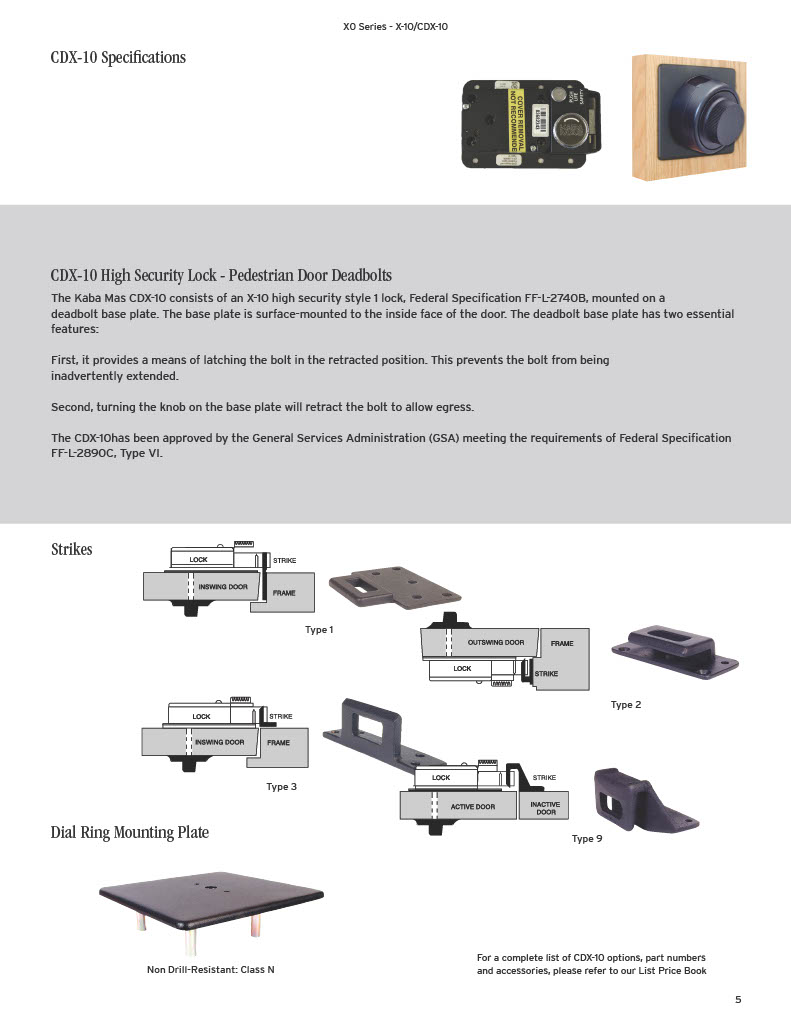

What the deadbolt base plate does on the CDX-10

The deadbolt base plate in the CDX-10 assembly serves two distinct operational functions beyond simply mounting the X-10 lock to the door. First, it provides a bolt-latch position that holds the bolt retracted so it cannot extend inadvertently when the door is open. This prevents the bolt from striking the frame during door operation and damaging either the hardware or the door prep. Second, the base plate knob provides egress: turning the knob from inside retracts the bolt regardless of the combination lock state, which is the required egress mechanism on locked pedestrian doors in classified environments.

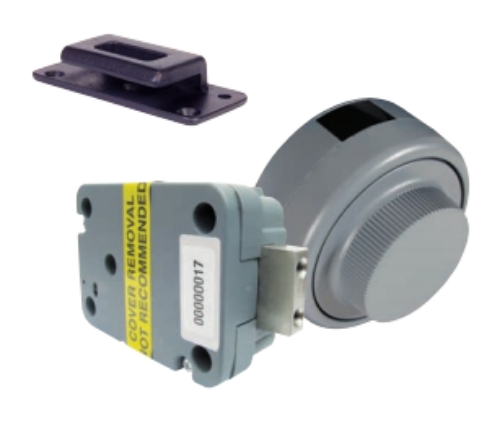

The assembly surface-mounts to the interior door face. No through-door mortise is required for the base plate. The X-10 lock body mounts to the base plate, and the combination dial is accessible from the outside of the door. Strike Type 2 is the strike configuration included with this model, which matches standard door frame preparations used in the government and DoD facilities this lock is specified for. The non-drill resistant mounting plate designation on this SKU identifies the plate type; drill-resistant mounting plate variants are available as separate configurations.

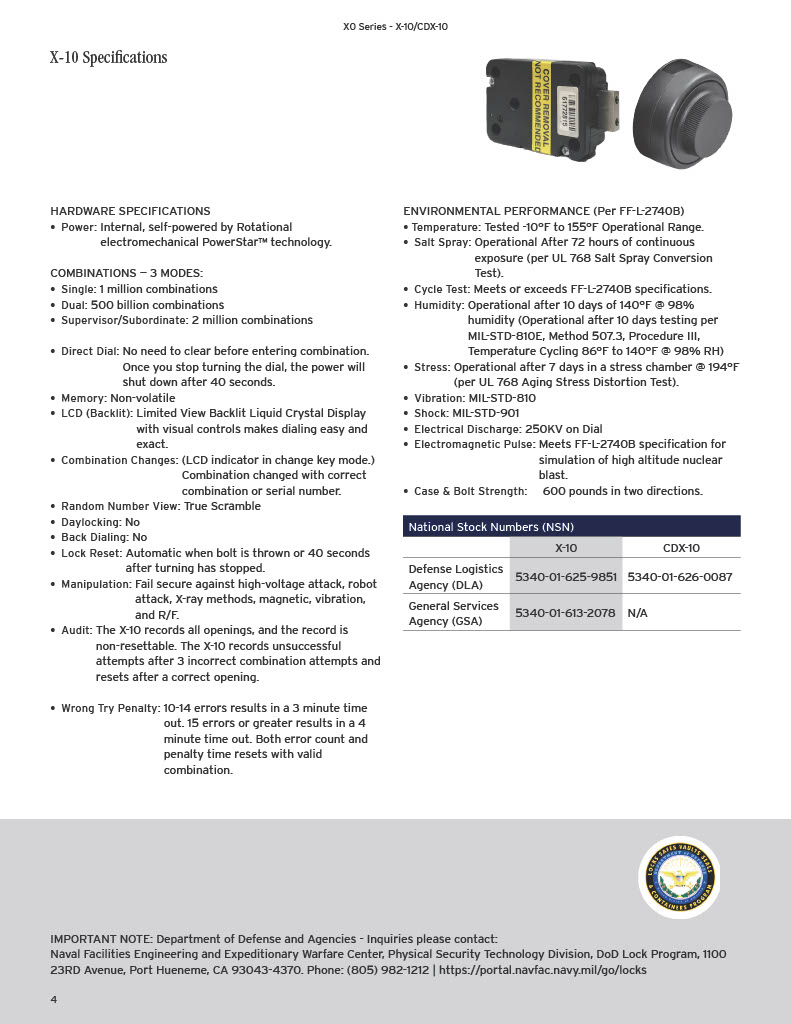

Combination modes, audit trail, and manipulation resistance

The X-10 supports three combination modes. Single mode provides one million possible combinations for individual user operation. Dual mode requires two separate combinations entered in sequence, producing 500 billion possible combination pairs — the correct specification for two-person integrity requirements in high-security classified facilities. Supervisor/Subordinate mode provides two million combinations with a hierarchical access structure. Direct Dial operation means the user starts dialing immediately without a pre-clear step. The LCD display is backlit with a limited-view design that restricts viewing angle to reduce shoulder-surfing risk. True Scramble displays random numbers on the dial to prevent observers from reading the combination from finger positioning.

The audit trail records all openings on a non-resettable basis. The record cannot be erased. Unsuccessful attempts are recorded after three consecutive wrong combinations. Wrong try penalties are automatic: 10 to 14 errors trigger a 3-minute lockout; 15 or more errors trigger a 4-minute lockout. Both the error count and penalty period reset with a valid combination entry. Auto reset also occurs 40 seconds after dialing stops or when the bolt is thrown, returning the lock to standby without requiring manual action.

Environmental ratings and physical security specifications

The CDX-10 meets the full environmental testing suite required under FF-L-2740B. Operational temperature range is tested from -10°F to 155°F. Salt spray testing confirms operational function after 72 continuous hours per the UL 768 Salt Spray Conversion Test. Humidity testing confirms operation after 10 days at 140°F and 98% relative humidity. Stress chamber testing confirms operation after 7 days at 194°F. Vibration resistance meets MIL-STD-810 and shock resistance meets MIL-STD-901. Electrostatic discharge resistance is rated to 250KV applied directly to the dial, and electromagnetic pulse resistance meets the FF-L-2740B specification for high-altitude nuclear blast simulation. Case and bolt strength is rated at 600 pounds of resistance in two directions. Manipulation resistance meets all FF-L-2740B requirements and resists opening through manipulation for 20 man-hours.

For the complete range of Kaba MAS high security products available on this site, browse the Kaba MAS catalog. The broader electronic keypad and proximity lock section covers coordinating electronic access hardware. For conventional high-security deadbolts for applications that do not require electronic combination operation, those are available separately.

Confirm your door preparation, strike type requirement, and mounting plate specification before ordering. The CDX-10 is the pedestrian door deadbolt configuration of the X-10 platform. Safe lock variants are available as separate SKUs within the Kaba MAS line.
