Norton Rixson L180 x 1-3/4 Door Top Pivot, 1-3/4" Lead Lined Door, 3/4" Offset

Norton Rixson L180 x 1-3/4 Door Top Pivot, 1-3/4" Lead Lined Door, 3/4" Offset

Product Details

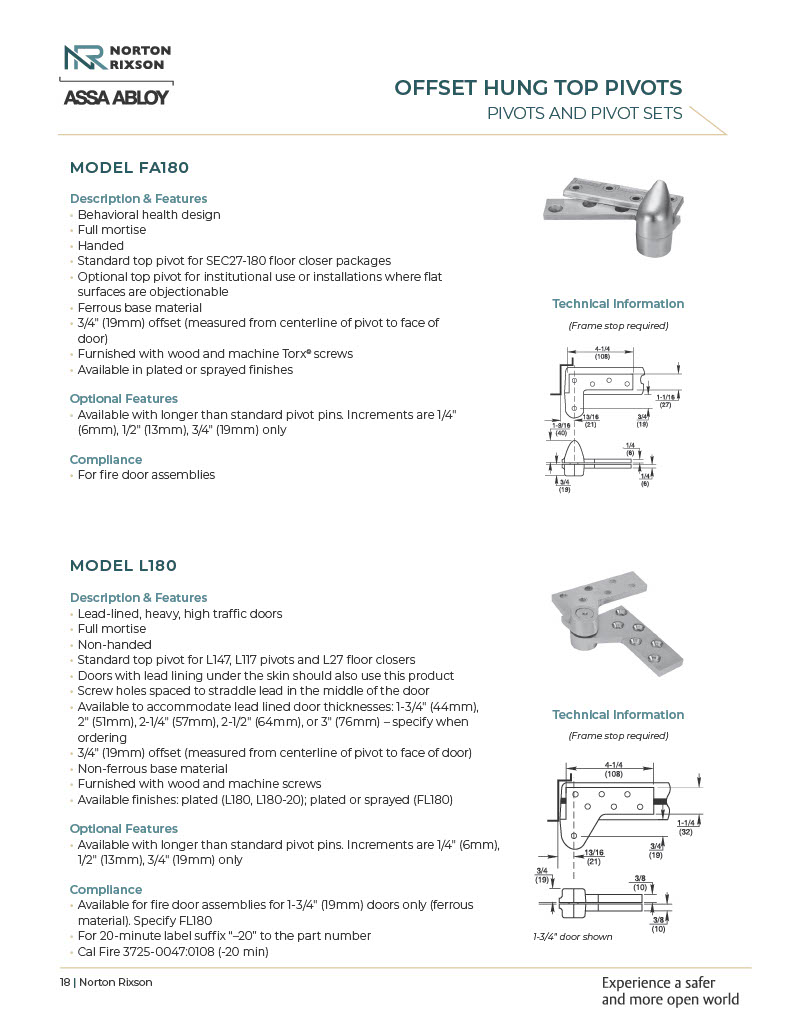

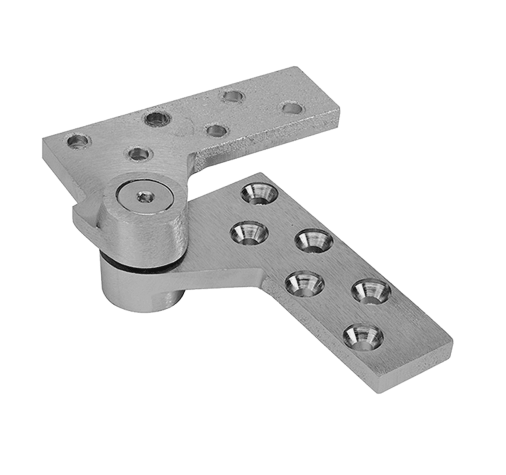

Norton Rixson *L180 x 1-3/4 Door Top Pivot, 1-3/4" Lead Lined Door, 3/4" Offset*

Application:

Lead-Lined/Heavy/HighTraffic DoorsFull MortiseNon-handed

Description/Features:

Standard top pivot for L147, L117 pivots and L27 floor closersDoors with lead lining under the skin should also use this productScrew holes spaced to straddle lead in the middle of the doorAvailable to accommodate lead lined door thicknesses: 1-3/4" (44mm), 2" (51mm), 2-1/4" (57mm), 2-1/2" (64mm), or 3" (76mm) – specify when orderingNon-ferrous base material3/4" (19mm) offset (measured from centerline of pivot to face of door)Furnished with wood and machine screwsAvailable with longer than standard pivot pins. Increments are 1/4" (6mm), 1/2" (13mm), 3/4" (19mm) only

Model:L180 X 1-3/4 Door RH 626, L180 X 1-3/4 LH 626 , L180X1-3/4RH626, L180 X 1-3/4 Door RH 612, L180 X 1-3/4 LH 612 , L180X1-3/4RH612, L180 X 1-3/4 Door RH 613, L180 X 1-3/4 LH 613 , L180X1-3/4RH613

Norton Rixson L180 x 1-3/4 Door Top Pivot, 1-3/4" Lead Lined Door, 3/4" Offset

Name: Norton Rixson L180 x 1-3/4 Door Top Pivot, 1-3/4" Lead Lined Door, 3/4" Offset
SKU: L180 x 1-3/4 Door
Price: 351.48 USD
Availability: InStock
