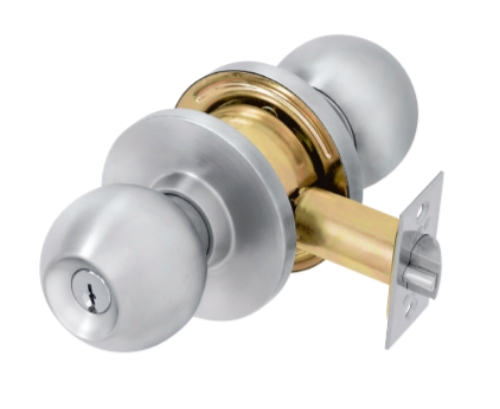

PDQ SV176 Privacy Grade 2 Standard Duty Ball Knob Cylindrical Lock

PDQ SV176 Privacy Grade 2 Standard Duty Ball Knob Cylindrical Lock Function: Privacy

• Latchbolt operated by both knobs.
• Push button in inside knob locks outside knob.
• Inside knob or closing door releases button.
• Emergency opening from outside.

ANSI:F76

PDQ SV Product Specifications

• UL listed for 3-hour fire door.
• Exceeds ANSI/BHMA A156.2 Grade 1. - 5 standard functions,
• Various strike and latch options to accommodate any opening,
• Available in keyways of most major manufacturers, - Tactile abrasive coating option,
• Antimicrobial coating option,
• Five (5) year limited warranty.

FOR DOORS:  1-3/8" to 2" thick. DOOR PREP:  Fits Standard 160 or 161 Door Prep. BACKSET:  2-3/8", 2-3/4", 5". CASE:  Steel, Yellow Chromate Plate. FRONT:  2-1/4" x 1-1/8" or 2-1/4" x 1"  - Stainless Steel or Wrought Bronze. STRIKE:  4-7/8" x 1-1/4" (ASA). T or FL Strike Optional.  - Stainless Steel or Wrought Bronze. UL F LATCHBOLT:3 hours of fire testing qualified, stainless steel latch bolt. ROSE:  3" DIA. HAND:  Non-handed. TRIM:CQ ball knob. Stainless steel. KEYWAYS:  Available in keyways of most major manufacturers. CYLINDER:  Supplied standard to accommodate SFIC core. (Cylinder not included).KEYING:  Standard core is available and can be MK, CMK, GMK, or CK. Available Zero Bitted (KO), Keyed Different (KD), Keyed Alike (KA). Can be keyed into existing master key systems of other manufacturers. FINISHES:  630 (US32D). WARRANTY:  Five (5) Year Limited Warranty. CERTIFICATIONS, LISTINGS, COMPLIANCES:  - Meets ANSI/BHMA A156.2 Grade 1 - UL/CUL 10C listed for 3 hrs, for single doors up to 4'0" x 8'0"

PDQSX176, PDQ SX176, SX176 PDQ, SX176PDQ, 630, US32D, PDQ SX176 630, US32D
