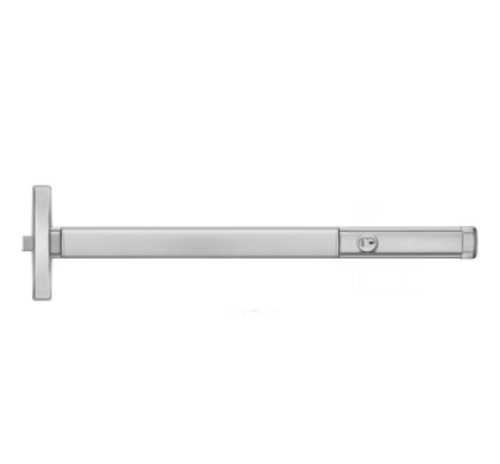

Precision 2414CD Apex Rim Exit Device, Lever/Knob Always Active, Cylinder Dogging - Narrow Stile

Precision 2414CD Apex Rim Exit Device, Lever/Knob Always Active, Cylinder Dogging  - Narrow Stile

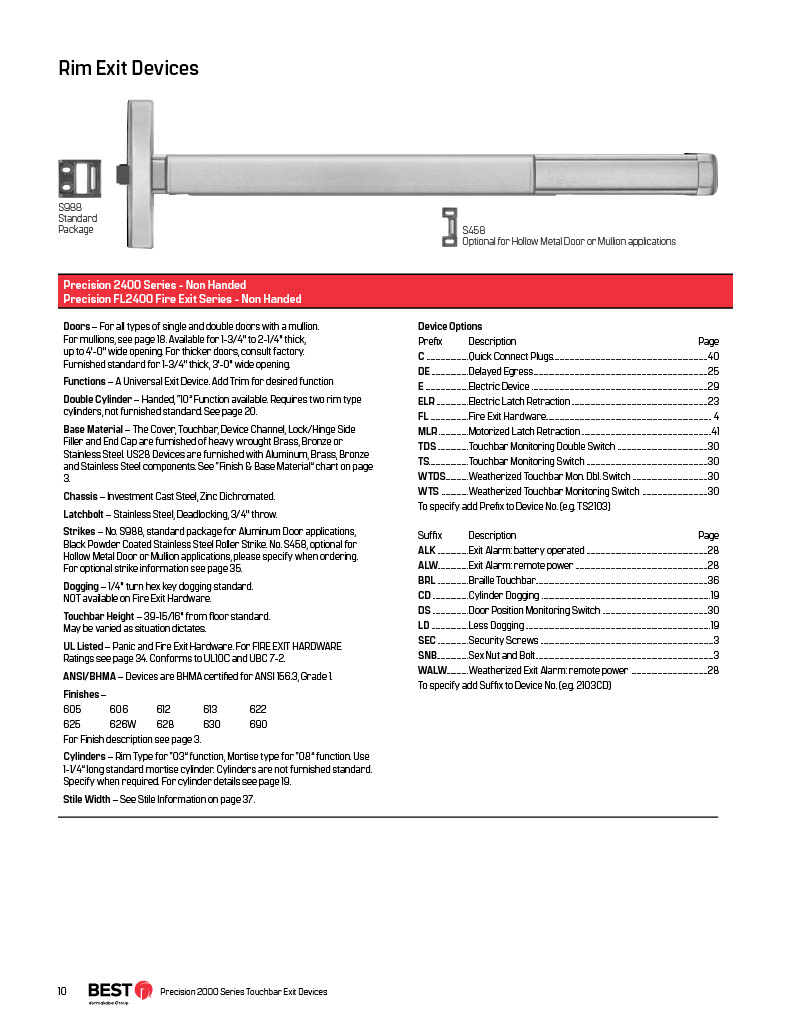

Description and Features:

Door Sizes: 36" - 2'-7" to 3' Door Width  48"- 3'-1" to 4' Door Width ( If Required, cut to size in the field)

Base Material:The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.

Chassis:Investment Cast Steel, Zinc Dichromated.

Latchbolt:Stainless Steel, Deadlocking, 3/4" throw.

Strikes:  No. S988, standard package for Aluminum Door applications, Black Powder Coated Stainless Steel Roller Strike. No. S458, optional for Hollow Metal Door or Mullion applications.

Dogging:1/4" turn hex key dogging standard.

ANSI/BHMA:Devices are BHMA certified for ANSI 156.3, Grade 1.

UL LISTED:Panic and Fire Exit Hardware.

Stile Width:See Catalog Page # 36

Electrical Options:

MLR - Motorized Latch Retraction: PRECISION Motorized Latch Retraction (MLR) exit devices feature the top-quality materials and robust engineering you expect from PRECISION, while reducing noise, lowering current requirements, and allowing for longer wire runs compared to power hungry solenoiddriven products. Perfect for use in applications that require more flexibility and quieter performance, PRECISION MLR engineering integrates easily with existing security frameworks.

DE - Delayed Egress: The Delayed Egress (DE) Exit Device provides a controlled egress for openings which require Panic or Fire Exit Hardwar for safe egress. It is a self contained exit device, which when armed will deny exit to unauthorized personnel for 15 or 30 seconds, while simultaneously sounding a local or remote audible alarm. The Remote Monitoring feature will alert the security personnel that an attempt is being made to exit the opening. After the 15 (or 30) second delay of egress period the device will function as a standard exit device for safe egress.

ELR - Electric Latch Retraction: The ELR option provides remote Latch Retraction of exit devices. Continuous duty solenoids retract the Latchbolt(s) for momentary unlatching or continuously for dogging. The ELR feature can be interfaced with automatic door operators, card readers, push buttons, toggle/key switches, and fire alarm systems.

TS - Touchbar Monitoring: TS - (SPDT - Single Pole, Double Throw) version allows for interface with one external component. A (2) wire power transfer is required, not furnished standard.

Model:Stanley-Precision 2414CD-630-48, 2414CD-630-36 , 2414CD630-48, 2414CD63036, 2414CD 630 48, 2414CD 630 36 , 2414CD63048, 2414CD63036, PHI 2414, 2414 PHI, 2414, 2414PHI, PHI2414
