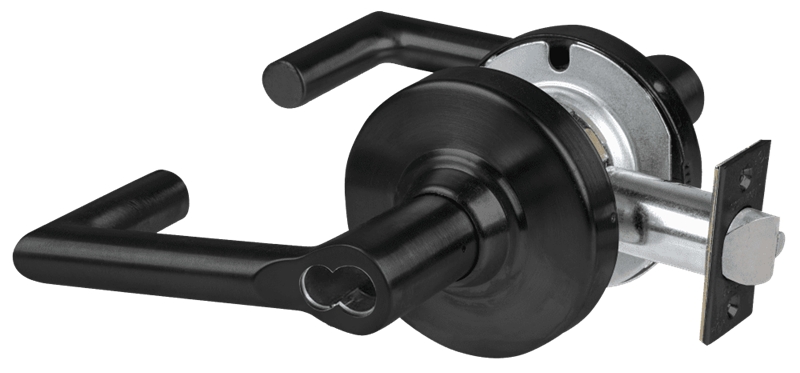

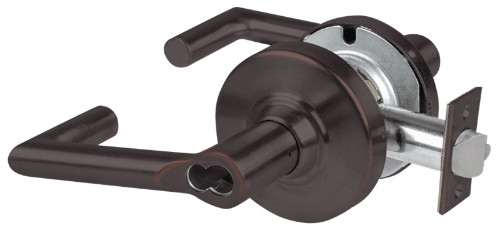

Schlage ALX50B BRK Grade 2 Office Cylindrical Lock with Field Selectable Vandlgard, Boardwalk Lever, SFIC Less Core

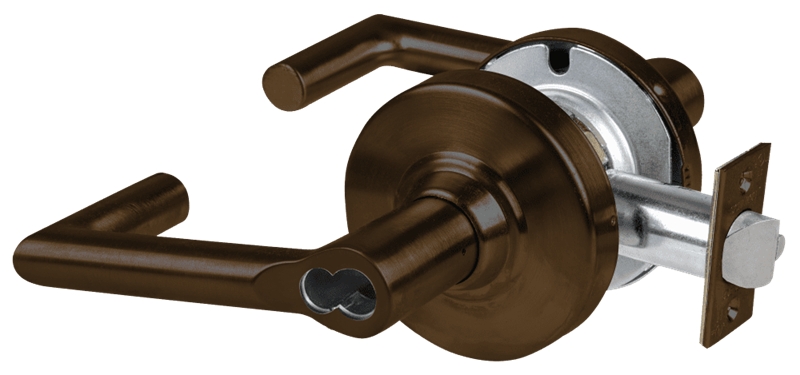

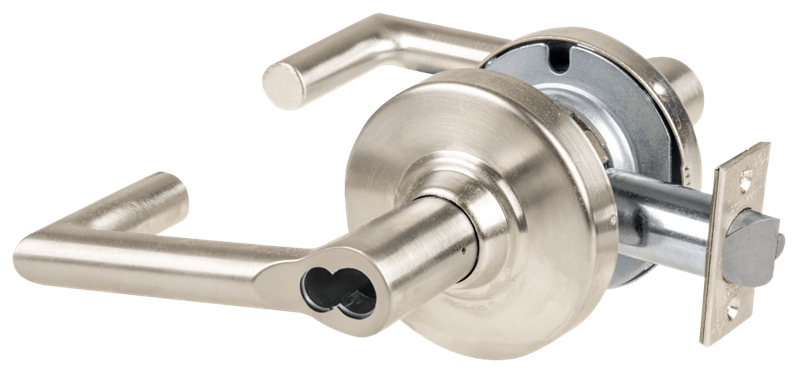

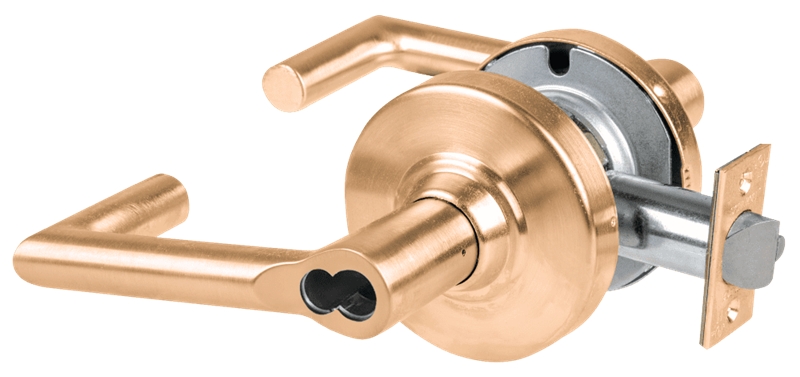

Picture of Schlage ALX50B BRK Grade 2 Office Cylindrical Lock with Field Selectable Vandlgard, Boardwalk Lever, SFIC Less Core
X50
1BRK
1-Page1-SchlageALX
1-Page2-SchlageALX
1-Page3-SchlageALX
Picture of Schlage ALX50B BRK Grade 2 Office Cylindrical Lock with Field Selectable Vandlgard, Boardwalk Lever, SFIC Less Core
Picture of Schlage ALX50B BRK Grade 2 Office Cylindrical Lock with Field Selectable Vandlgard, Boardwalk Lever, SFIC Less Core
Picture of Schlage ALX50B BRK Grade 2 Office Cylindrical Lock with Field Selectable Vandlgard, Boardwalk Lever, SFIC Less Core
Picture of Schlage ALX50B BRK Grade 2 Office Cylindrical Lock with Field Selectable Vandlgard, Boardwalk Lever, SFIC Less Core
Picture of Schlage ALX50B BRK Grade 2 Office Cylindrical Lock with Field Selectable Vandlgard, Boardwalk Lever, SFIC Less Core
Picture of Schlage ALX50B BRK Grade 2 Office Cylindrical Lock with Field Selectable Vandlgard, Boardwalk Lever, SFIC Less Core
Picture of Schlage ALX50B BRK Grade 2 Office Cylindrical Lock with Field Selectable Vandlgard, Boardwalk Lever, SFIC Less Core
Picture of Schlage ALX50B BRK Grade 2 Office Cylindrical Lock with Field Selectable Vandlgard, Boardwalk Lever, SFIC Less Core
X50
1BRK
1-Page1-SchlageALX
1-Page2-SchlageALX
1-Page3-SchlageALX
Picture of Schlage ALX50B BRK Grade 2 Office Cylindrical Lock with Field Selectable Vandlgard, Boardwalk Lever, SFIC Less Core
Picture of Schlage ALX50B BRK Grade 2 Office Cylindrical Lock with Field Selectable Vandlgard, Boardwalk Lever, SFIC Less Core
Picture of Schlage ALX50B BRK Grade 2 Office Cylindrical Lock with Field Selectable Vandlgard, Boardwalk Lever, SFIC Less Core
Picture of Schlage ALX50B BRK Grade 2 Office Cylindrical Lock with Field Selectable Vandlgard, Boardwalk Lever, SFIC Less Core
Picture of Schlage ALX50B BRK Grade 2 Office Cylindrical Lock with Field Selectable Vandlgard, Boardwalk Lever, SFIC Less Core
Picture of Schlage ALX50B BRK Grade 2 Office Cylindrical Lock with Field Selectable Vandlgard, Boardwalk Lever, SFIC Less Core
Picture of Schlage ALX50B BRK Grade 2 Office Cylindrical Lock with Field Selectable Vandlgard, Boardwalk Lever, SFIC Less Core
naxt
prev

Product Details

Schlage ALX50B BRK Grade 2 Entrance Office Cylindrical Lock,  Non-handed, Small Format IC Core - Less core (SFIC), Boardwalk Lever

ALX50 - Entrance/office lock

ANSI - F82

Key cylinder outside; push button inside; deadlatch.

Inside push button locks outside lever.

Unlock with key outside or by rotating inside lever.

Inside lever always free for immediate egress.

Chassis:

Material - Zinc and steel, zinc dichromate plated for corrosion resistance.

Door thickness - Standard:1 3/8" to 1 3/4" + .012 to accommodate wrap.

Handing - Non-Handed.

Levers - Boardwalk Lever.

Optional Tactile feature - Boardwalk (8BK).

Roses - Wrought brass, bronze or zinc plated to match finish specification.

Standard: 3 7/16" diameter. Blank outside rose is 3 1/2" diameter.

Finishes: 606 - Satin Brass, 612 - Satin Bronze, 613 - Oil Rubbed Bronze, 619 - Satin Nickel, 626 - Satin Chrome, 626AM - Satin Chrome Antimicrobial, 643E - Aged Bronze, 622 - Matte Black.

Backset Standard: 2 3/4",  Optional: 2 3/8, 3 3/4", 5".

Faceplate:

Standard: 1 1/8" X 2 1/4" square corners,

Optional: Multiple options with square or radius corners.

Bolt:

Standard: 7/8" bolt diameter, up to 1"  housing diameter, 1/2" throw in Stainless Steel,

Optional: 1" bolt diameter with 1/2" throw, 3/4" anti-friction fire latch.

Strike:

Standard: ANSI Curved Lip: 1 1/4" x 4 7/8" x 1 3/16"

Optional: T strike.

Cylinders: Small Format IC Core - Less core (SFIC).

Warranty: 10-year limited.

Certifications:

ANSI/BHMA - Certified A156.2-2011 Series 4000, Grade 2; exceeds standard for lever and spindle strength and durability.

ICC - Complies with ICC A117.1 for Accessible and Usable Buildings and Facilities.

UL/CUL - All locks listed for A label single fire door 4' x 8' for 3-hours. Upgrade options available to achieve 4' x 10' 3-hour; pair doors 8' x 8' 3-hour; and 8' x 10' 90-minute. Letter F and UL symbol on latch front indicate listing.

UL 437 - Optional UL listed high-security cylinders available in Conventional format.

CA Fire Code - All levers with a return to door of 1/2" (64 mm) or less comply (Boardwalk, Longitude, Omega, Rhodes, Saturn, Sparta, and Tubular).

FL Building Code - ASTM E1886 and E1996 impact and cycle/Miami-Dade equivalent TAS 201 and TAS 202. ASTM E330 static load/Miami-Dade equivalent TAS 202.

Federal - Meets FF-H-106C Series 161.

ADA compliant - All lever designs meet Americans with Disabilities Act requirements.

Schlage ALX50B BRK Grade 2 Office Cylindrical Lock with Field Selectable Vandlgard, Boardwalk Lever, SFIC Less Core

SKU: ALX50BBRK

In Stock

$181.26

Finish *

626 - Satin Chrome
626 - Satin Chrome

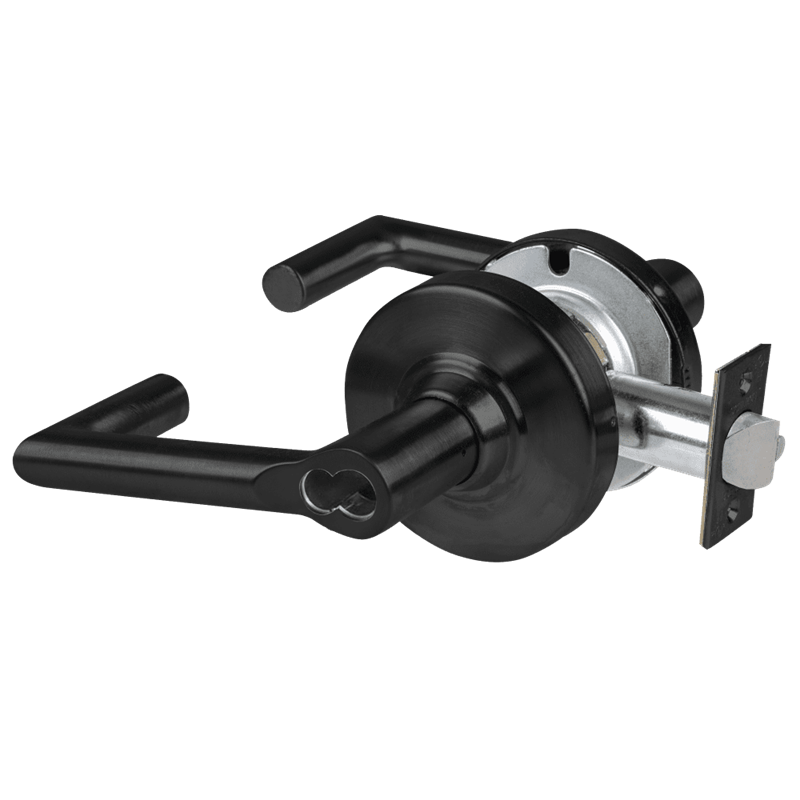

622 - Matte Black
622 - Matte Black
606 - Satin Brass
606 - Satin Brass
612 - Satin Bronze
612 - Satin Bronze
613 - Oil Rubbed Bronze
613 - Oil Rubbed Bronze

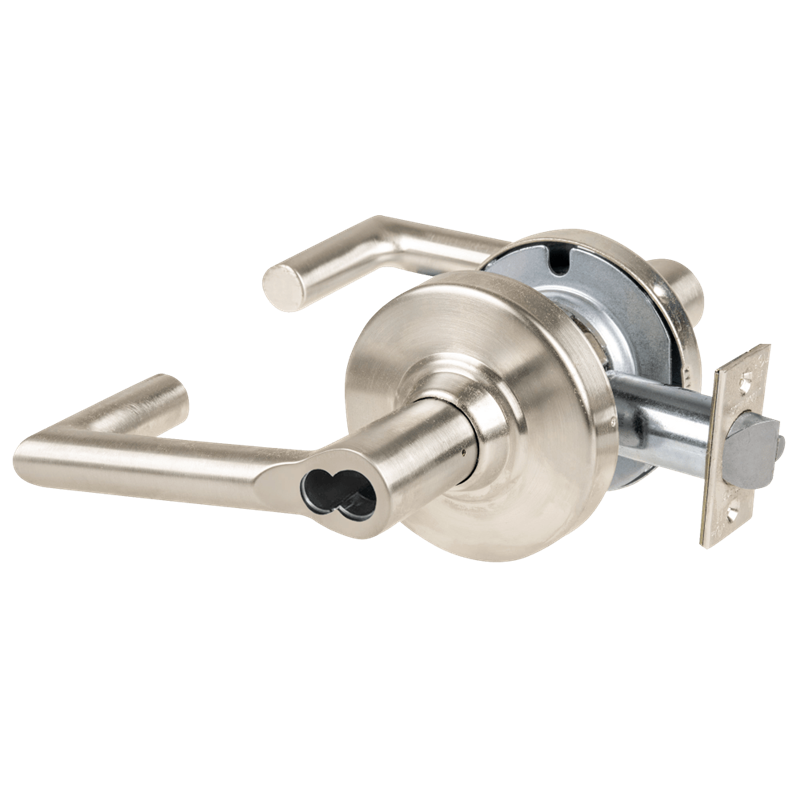

619 - Satin Nickel
619 - Satin Nickel
643E - Aged Bronze
643E - Aged Bronze

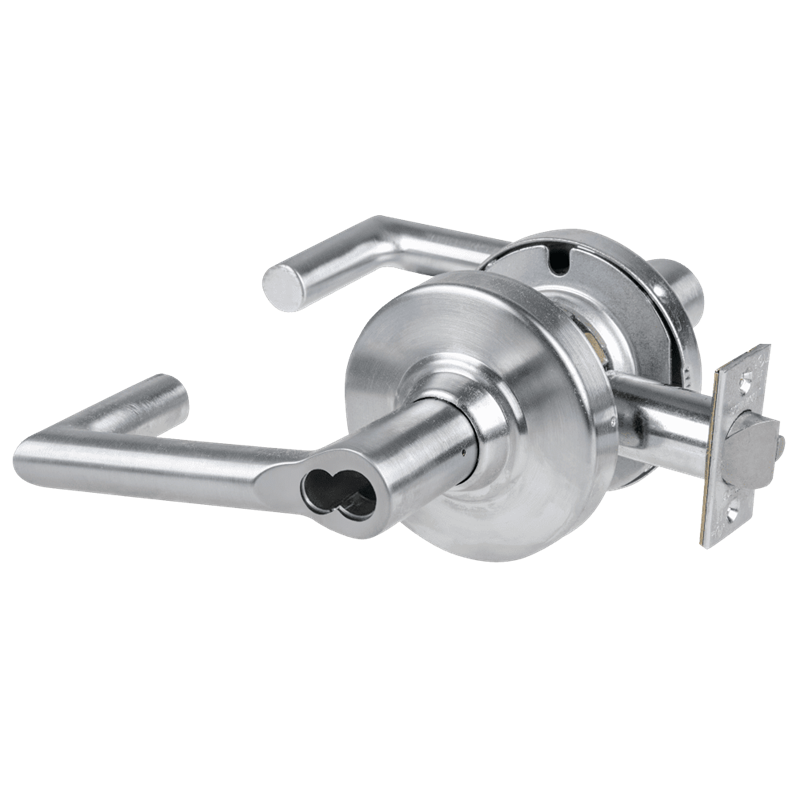

626AM - Satin Chrome
626AM - Satin Chrome

Backset *

2-3/4" Backset (Standard)
2-3/4" Backset (Standard)
2-3/8" Backset
2-3/8" Backset

Strike *

ANSI Strike - 4-7/8" (Standard)
ANSI Strike - 4-7/8" (Standard)
T Strike - 2-3/4"
T Strike - 2-3/4"

About this item

The Schlage ALX50B BRK is a Grade 2 office cylindrical lock with the Boardwalk lever, field-selectable Vandlgard, and a small format interchangeable core (SFIC) housing supplied less core. It's the office/entrance function (ANSI F82) in Schlage's modular ALX Series, built for the doors where someone inside needs simple push-button control over who gets in, offices, conference rooms, suites, and break rooms. As a Schlage Grade 2 office cylindrical lock, it pairs the convenience of push-button locking with the durability and field flexibility that make the ALX a smart pick across a whole building.



How the office function works



The office function (ANSI F82) is specific, and understanding it is what helps you spec it correctly. There's a key cylinder on the outside and a push button on the inside. Press the inside push button and the outside lever locks, so people in the room control entry without a key. To get back in from the corridor, you use the key outside, and from inside the lever is always free for immediate egress, so no one is ever trapped. Rotating the inside lever also releases the button. That push-button setup is exactly what an office door wants: staff lock up quickly from inside for privacy or a meeting, the door still opens instantly from within, and a keyholder can always get in from outside.

That's the difference from the other ALX functions. Where the storeroom lock stays locked by default and the classroom locks only by key from the corridor, the office function gives the occupant push-button control, which is the right behavior for an everyday office or conference room door.



Field-selectable Vandlgard and the SFIC core



Two features make this Schlage Grade 2 office cylindrical lock more flexible than a standard one. Field-selectable Vandlgard lets the outside lever rotate freely when locked, so wrenching on it doesn't damage the chassis, and you can switch Vandlgard on or off in the field, so one lock covers a high-abuse door and a normal one. The SFIC housing accepts a small format interchangeable core, which means it drops into an existing small-format key system and can be rekeyed in seconds by swapping the core. This one ships less core, so you supply the SFIC core that matches your keying.



Schlage ALX50B BRK specifications



  • Grade: ANSI/BHMA A156.2-2011 Series 4000, Grade 2, exceeding the standard for lever and spindle strength and durability.

  • Function: Office/entrance (ALX50), ANSI F82. Key outside, push button inside. Inside button locks outside lever, unlock by key outside or by rotating inside lever. Inside lever is always free.

  • Lever: Boardwalk (BRK), with optional tactile (8BK) version. Non-handed.

  • Cylinder: Small format interchangeable core (SFIC) housing, supplied less core. Optional UL 437 high-security cylinders in conventional format.

  • Vandlgard: Field-selectable, switch between Vandlgard and standard locked-lever engagement without replacing the lock.

  • Chassis: Modular ALX design, zinc and steel, zinc dichromate plated for corrosion resistance.

  • Door thickness: 1-3/8 inch to 1-3/4 inch standard.

  • Backset: 2-3/4 inch standard, 2-3/8 inch, 3-3/4 inch, and 5 inch optional.

  • Bolt: 1/2 inch throw deadlatch, stainless steel. 3/4 inch anti-friction fire latch optional.

  • Fire: UL and cUL listed for A-label single fire doors up to 3 hours, with upgrade options for larger openings and pairs.

  • Compliance: ADA and ICC A117.1 compliant. Boardwalk lever meets CA Fire Code return-to-door requirements. Meets Florida Building Code impact and Federal FF-H-106C Series 161.

  • Finishes: Satin brass (606), satin bronze (612), oil rubbed bronze (613), satin nickel (619), satin chrome (626), satin chrome antimicrobial (626AM), aged bronze (643E), matte black (622).

  • Warranty: 10-year limited.



Why specify the Schlage ALX Series



The ALX exists to solve a budgeting reality: you want Grade 1 security on the critical doors but can't justify it everywhere. The ALX is a true Grade 2 lock that operationally and visually suites with Schlage's Grade 1 ND Series, so you can run AND where demand is highest and ALX everywhere else while keeping a consistent look building-wide. The modular chassis is the long-term payoff, because when a room changes use you can reconfigure the lock function in the field instead of buying a new lock, which saves real money over a building's life. The SFIC option here also lets the office locks join the same interchangeable-core key system as the rest of the facility.

One thing to confirm before ordering: this is the SFIC less-core version, so you'll need a compatible small format core, and the office function (push button inside) is specific, so make sure that's the behavior your door needs rather than a storeroom or classroom function.



Order the Schlage ALX50B BRK from American Locksets



We stock the full Schlage ALX Series from authorized distribution, so every lockset ships with a real manufacturer warranty. Compare functions, levers, and finishes in the Schlage ALX Series Grade 2 category, or browse all commercial locks.



Schlage ALX50B BRK Grade 2 Entrance Office Cylindrical Lock,  Non-handed, Small Format IC Core - Less core (SFIC), Boardwalk Lever

ALX50 - Entrance/office lock

ANSI - F82

Key cylinder outside; push button inside; deadlatch.

Inside push button locks outside lever.

Unlock with key outside or by rotating inside lever.

Inside lever always free for immediate egress.

Chassis:

Material - Zinc and steel, zinc dichromate plated for corrosion resistance.

Door thickness - Standard:1 3/8" to 1 3/4" + .012 to accommodate wrap.

Handing - Non-Handed.

Levers - Boardwalk Lever.

Optional Tactile feature - Boardwalk (8BK).

Roses - Wrought brass, bronze or zinc plated to match finish specification.

Standard: 3 7/16" diameter. Blank outside rose is 3 1/2" diameter.

Finishes: 606 - Satin Brass, 612 - Satin Bronze, 613 - Oil Rubbed Bronze, 619 - Satin Nickel, 626 - Satin Chrome, 626AM - Satin Chrome Antimicrobial, 643E - Aged Bronze, 622 - Matte Black.

Backset Standard: 2 3/4",  Optional: 2 3/8, 3 3/4", 5".

Faceplate:

Standard: 1 1/8" X 2 1/4" square corners,

Optional: Multiple options with square or radius corners.

Bolt:

Standard: 7/8" bolt diameter, up to 1"  housing diameter, 1/2" throw in Stainless Steel,

Optional: 1" bolt diameter with 1/2" throw, 3/4" anti-friction fire latch.

Strike:

Standard: ANSI Curved Lip: 1 1/4" x 4 7/8" x 1 3/16"

Optional: T strike.

Cylinders: Small Format IC Core - Less core (SFIC).

Warranty: 10-year limited.

Certifications:

ANSI/BHMA - Certified A156.2-2011 Series 4000, Grade 2; exceeds standard for lever and spindle strength and durability.

ICC - Complies with ICC A117.1 for Accessible and Usable Buildings and Facilities.

UL/CUL - All locks listed for A label single fire door 4' x 8' for 3-hours. Upgrade options available to achieve 4' x 10' 3-hour; pair doors 8' x 8' 3-hour; and 8' x 10' 90-minute. Letter F and UL symbol on latch front indicate listing.

UL 437 - Optional UL listed high-security cylinders available in Conventional format.

CA Fire Code - All levers with a return to door of 1/2" (64 mm) or less comply (Boardwalk, Longitude, Omega, Rhodes, Saturn, Sparta, and Tubular).

FL Building Code - ASTM E1886 and E1996 impact and cycle/Miami-Dade equivalent TAS 201 and TAS 202. ASTM E330 static load/Miami-Dade equivalent TAS 202.

Federal - Meets FF-H-106C Series 161.

ADA compliant - All lever designs meet Americans with Disabilities Act requirements.

Picture of Schlage ALX50B BRK Grade 2 Office Cylindrical Lock with Field Selectable Vandlgard, Boardwalk Lever, SFIC Less Core
Schlage ALX50B BRK Grade 2 Office Cylindrical Lock with Field Selectable Vandlgard, Boardwalk Lever, SFIC Less Core

Product code: ALX50BBRK

In Stock

$181.26

$181.26

The Schlage ALX Series gives you the ability to use it as you would any other lock: ordered and delivered as a complete, configured product ready for installation.

However, in its new modular design, ALX Series offers you the flexibility to utilize the separate components of chassis, function and lever packaged kits to create a lock to meet your needs on demand.

So whether you are a locksmith wanting truck stock solutions that eliminate call backs, or a facility manager wanting to repurpose rooms and change lock functions without the expense of new hardware, ALX Series can work for you.

Schlage ALX Series mechanical specifications

ALX Series locks can be configured during installation to support any door handing. As a result, it is not necessary to specify handing during the ordering process.

Optional**Tactile warning for the visually impaired Tactile warning is a special texture that can be applied to either lever to alert the visually impaired to a potential hazard on the opposite side of the door (exit to street, a workshop or other hazardous area, etc). Tactile warning is specified by an 8 prefix on the lever design.
