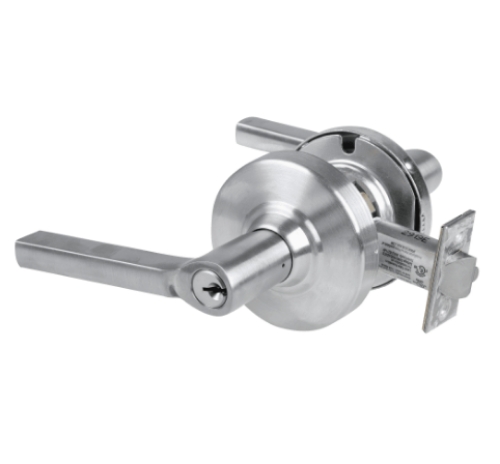

Schlage ALX80P6 LAT 626 Grade 2 Storeroom Cylindrical Lock with Field Selectable Vandlgard, Latitude Lever, Conventional Cylinder, Satin Chrome Finish

The Schlage ALX80P6 LAT is a Grade 2 storeroom cylindrical lock with the Latitude lever, a conventional 6-pin cylinder, and a 626 satin chrome finish. It's one of Schlage's most-specified Grade 2 locksets for a reason: it pairs the secure-by-default storeroom function with the modular ALX chassis and field-selectable Vandlgard, so a single lock adapts to more openings than a standard Grade 2 storeroom lock can. This is the lock for doors that stay locked to the public but always allow exit, like storerooms, supply and mechanical rooms, server closets, and secured back-of-house areas.

What the storeroom function and field-selectable Vandlgard do

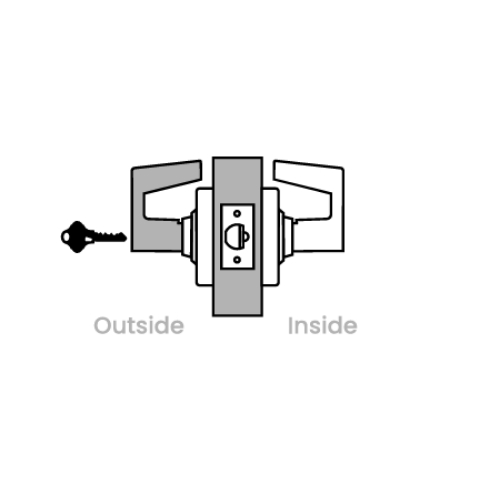

The storeroom function (ANSI F86) is the workhorse of commercial locking. The outside lever is always fixed and requires a key to retract the latch and enter, the inside lever is always free so egress is never blocked, and the deadlatch resists manipulation. There's no thumbturn and no button, so the door stays secured by default and relocks every time it closes, with nothing for staff to set or forget.

Field-selectable Vandlgard is the feature that separates this Schlage Grade 2 lever lock from an ordinary one. Vandlgard lets the outside lever rotate freely up and down while locked, so when someone wrenches on it there's nothing to torque against and the chassis isn't damaged. On the ALX, you can switch Vandlgard on or off in the field, so one lock covers both a high-abuse door and a normal one. Most Grade 2 storeroom locksets force that decision at the time of order. This one lets you make it on install.

Schlage ALX80P6 LAT specifications

• Grade: ANSI/BHMA A156.2-2011 Series 4000, Grade 2, exceeding the standard for lever and spindle strength and durability.

• Function: Storeroom (ALX80), ANSI F86. Outside lever is always fixed, the key retracts the latch, and the inside lever is always free. Deadlatch.

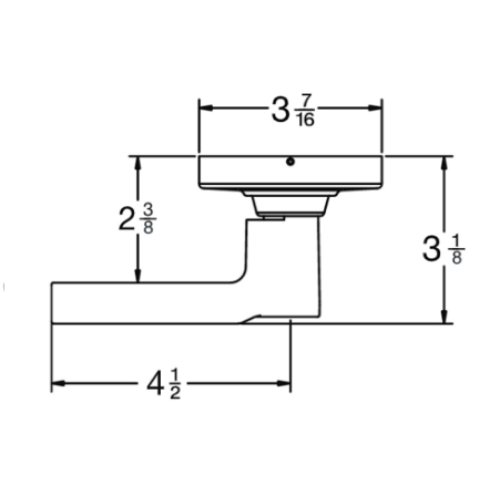

• Lever: Latitude (LAT). Non-handed.

• Cylinder: P6 conventional 6-pin, solid brass, C keyway standard (wide range of keyway and 0-bitted options available). Optional UL 437 high-security cylinders.

• Vandlgard: Field-selectable, switch between Vandlgard and standard locked-lever engagement without replacing the lock.

• Chassis: Modular ALX design, zinc and steel, zinc dichromate plated for corrosion resistance.

• Door thickness: 1-3/8 inch to 1-3/4 inch standard.

• Backset: 2-3/4 inch standard, 2-3/8 inch, 3-3/4 inch, and 5 inch optional.

• Bolt: 1/2 inch throw deadlatch, stainless steel. 3/4 inch anti-friction fire latch optional.

• Fire: UL and cUL listed for A-label single fire doors up to 3 hours, with upgrade options for larger openings and pairs.

• Compliance: ADA and ICC A117.1 compliant. Meets Florida Building Code impact and Federal FF-H-106C Series 161.

• Finish: 626 satin chrome.

• Warranty: 10-year limited.

Why specify the Schlage ALX Series

The ALX exists to solve a budgeting reality: you want Grade 1 security on the critical doors but can't justify it everywhere. The ALX is a true Grade 2 lockset that operationally and visually suites with Schlage's Grade 1 ND Series, so you can run ND on the highest-demand doors and ALX everywhere else while keeping a consistent look building-wide. The modular chassis is the long-term payoff, because when a room changes use you can reconfigure the lock function in the field instead of buying a new lock, which is real money saved over a building's life.

For this storeroom configuration specifically, the Latitude lever and conventional cylinder make it a clean, code-compliant choice that drops into most existing keyways, and the satin chrome finish suits almost any commercial interior.

Order the Schlage ALX80P6 LAT from American Locksets

We stock the full Schlage ALX Series from authorized distribution, so every lockset ships with a real manufacturer warranty. Compare functions, levers, and finishes in the Schlage ALX Series Grade 2 category, or browse all commercial locks.
