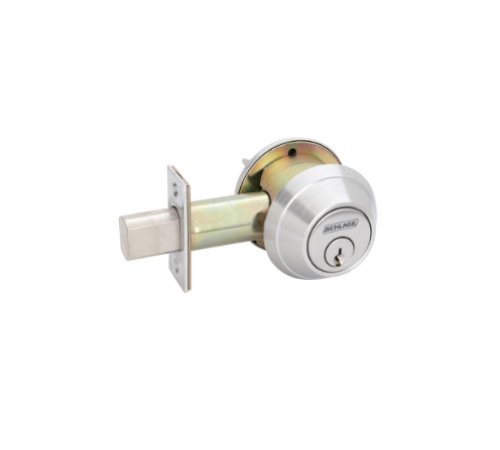

Schlage B661 Single Cylinder x Plate Deadbolt

B661P-626
1-2cylinder
1-3cylinder
1New1Finishes
1-Page2-B600
B661P-626
1-2cylinder
1-3cylinder
1New1Finishes
1-Page2-B600
naxt
prev

Product Details

Single Cylinder X Plate DeadboltANSI:E2161

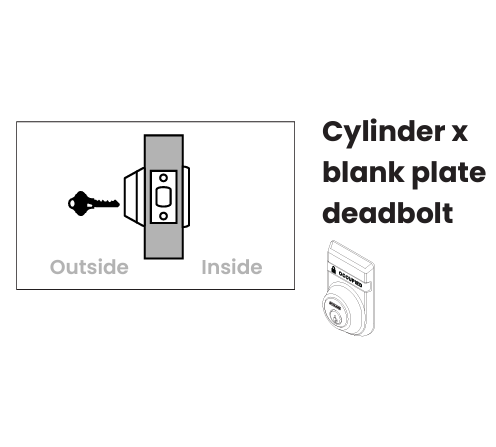

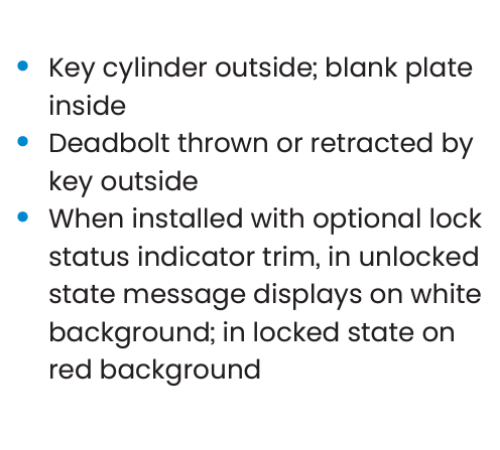

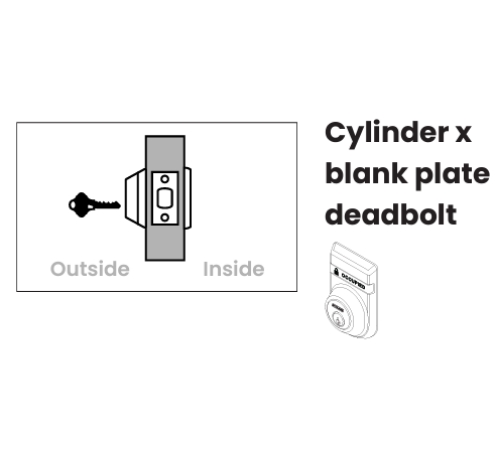

Deadbolt thrown or retracted by key outside. Blank plate with exposed screws inside

Handing:Locksets are non-handed.

Door Thickness: B600 Series: 1-3/4"to 2" (44mm to 51mm) standard.

*Backset:*B600Series: 2-3/4"(70mm) standard, 2-3/8"(60mm)optional.

*Front:*Brass, bronze or stainless steel. 1-1/8"x 2-1/4"(29 mm x 57mm) square corner, beveled.

Dead Bolt:1" (25 mm) throw with saw-resistant hardened steel insert.

*Exposed Trim:*Wrought brass, bronze or stainless steel. Thumbturn: Pressure cast zinc, plated to match finish symbols.

*Strike:*1-1/4"x 2-3/4"(32mm x 70mm) with steel reinforcer and two 3screws to resist kick-in attacks standard.

*Cylinder & Keys:*6-pin C keyway standard with two nickel silver keys per lock.

*Keying Options:*Interchangeable core. Master keying, grand master keying and construction keying.

*Warranty: *Three-year limited.

Schlage B661 Single Cylinder x Plate Deadbolt

SKU: B661

In Stock
Picture for manufacturer Schlage
icon Chat

$180.60

Backset *

2-3/4" Backset
2-3/4" Backset
2-3/8" Backset
2-3/8" Backset

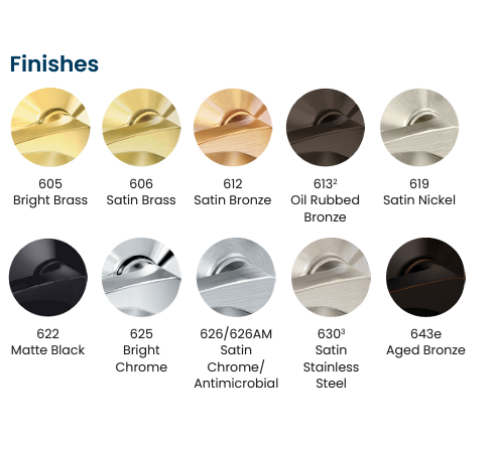

Finish *

626 - Satin Chrome
626 - Satin Chrome
605 - Bright Brass [+$3.60]
605 - Bright Brass [+$3.60]
606 - Satin Brass [+$3.60]
606 - Satin Brass [+$3.60]
609 - Antique Brass [+$3.60]
609 - Antique Brass [+$3.60]
612 - Satin Bronze [+$3.60]
612 - Satin Bronze [+$3.60]
613 - Oil Rubbed Bronze [+$9.60]
613 - Oil Rubbed Bronze [+$9.60]
619 - Satin Nickel [+$3.60]
619 - Satin Nickel [+$3.60]
625 - Bright Chrome [+$3.60]
625 - Bright Chrome [+$3.60]

Cylinder *

P - 6-Pin conventional (standard)
P - 6-Pin conventional (standard)
BD - Small format IC core - less core
BD - Small format IC core - less core
J - Large format IC core - less core [-$19.20]
J - Large format IC core - less core [-$19.20]

Keyway *

Keying *

About this item

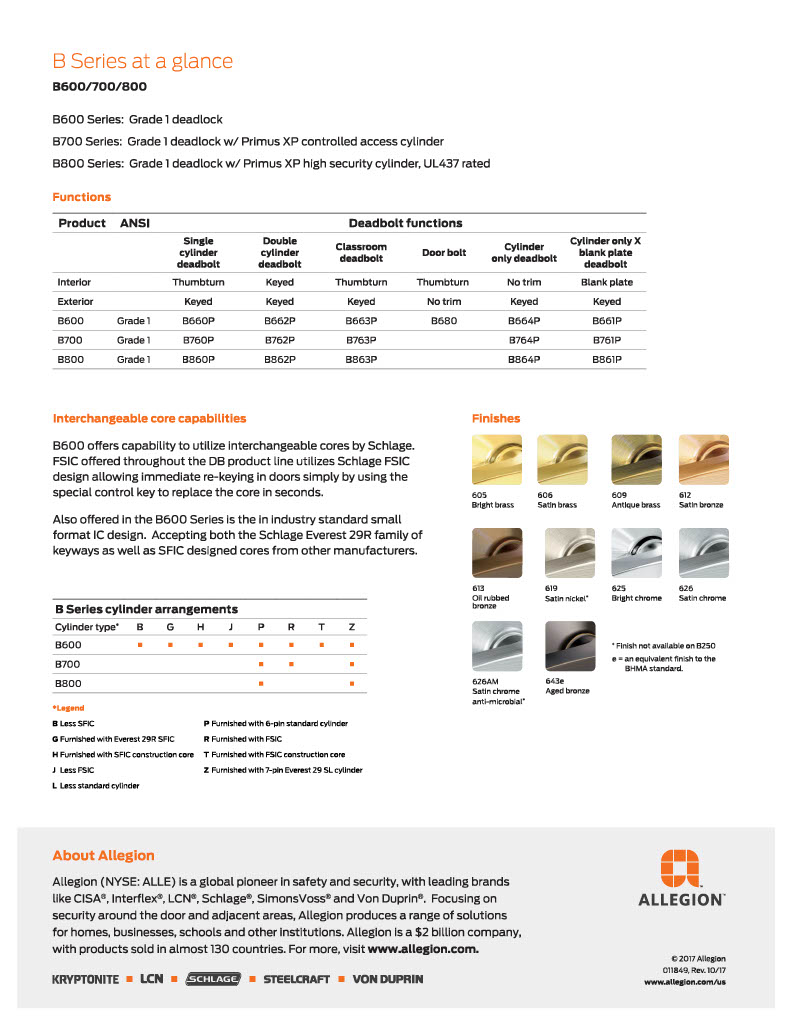

B600-SERIES Schlages toughest heavy duty Grade 1 commercial deadlock. Furnished with conventional cylinder standard. Also available with full size interchangeable core cylinder or small format interchangeable core (SFIC) cylinder.

Resources

Single Cylinder X Plate DeadboltANSI:E2161

Deadbolt thrown or retracted by key outside. Blank plate with exposed screws inside

Handing:Locksets are non-handed.

Door Thickness: B600 Series: 1-3/4"to 2" (44mm to 51mm) standard.

*Backset:*B600Series: 2-3/4"(70mm) standard, 2-3/8"(60mm)optional.

*Front:*Brass, bronze or stainless steel. 1-1/8"x 2-1/4"(29 mm x 57mm) square corner, beveled.

Dead Bolt:1" (25 mm) throw with saw-resistant hardened steel insert.

*Exposed Trim:*Wrought brass, bronze or stainless steel. Thumbturn: Pressure cast zinc, plated to match finish symbols.

*Strike:*1-1/4"x 2-3/4"(32mm x 70mm) with steel reinforcer and two 3screws to resist kick-in attacks standard.

*Cylinder & Keys:*6-pin C keyway standard with two nickel silver keys per lock.

*Keying Options:*Interchangeable core. Master keying, grand master keying and construction keying.

*Warranty: *Three-year limited.

B661P-626
Schlage B661 Single Cylinder x Plate Deadbolt

Product code: B661

In Stock

$180.60

$180.60

*ANSI:*B600 Series meets or exceeds A156.5 Grade 1 strength and operational requirements.

*UL / cUL:B600 Series locks are UL10B listedauxiliary locks*for A label single doors, 4 x 8.

B661P-626
Schlage B661 Single Cylinder x Plate Deadbolt

Product code: B661

In Stock

$180.60

$180.60
