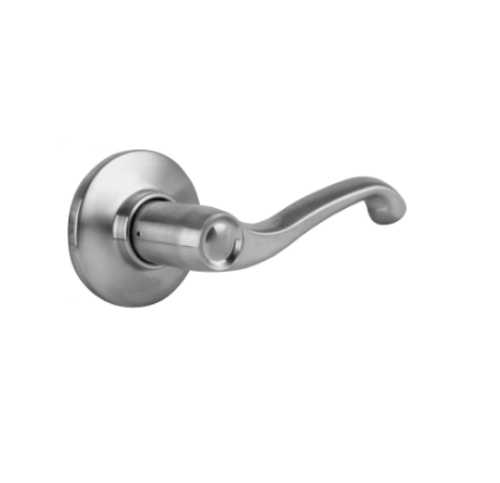

Schlage S170 Flair (FLA) Grade 2 Tubular Lock

***Schlage S170 Flair (FLA) Single Dummy Trim *

Dummy trim for one side of door. Used for door pull or as matching inactive trim.

Applications:Interior light to medium duty commercial doors: office tenant, laboratories, passage and entrance doors. Heavy duty residential doors: single and multi-family housing.

Finishes:626 - Satin Chrome, 605 - Bright Brass, 606 - Satin Brass, 609 - Antique Brass, 612 - Satin Bronze, 613 - Oil Rubbed Bronze, 625 - Bright Chrome

Certifications:ANSI A156.2, 1996, Series 4000 Grade 2. UL Listed for all functions up to 3-hour doors

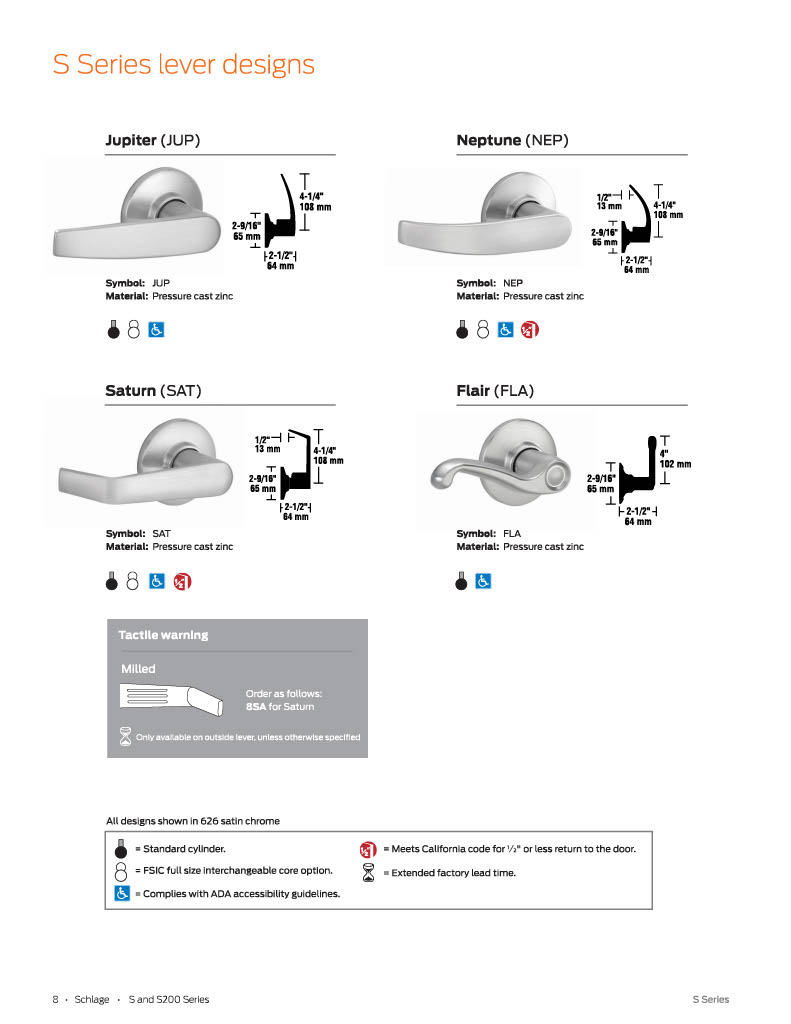

Non-handed levers (except Flair design).

Door Range:1 3/8" - 2" (35 mm - 51mm), except S40D: 1 3/8" - 1 7/8" (35 mm - 48 mm).

Backset:Universal backset latches standard, fit either 2 3/8" (60 mm) or 2" (70 mm) backsets. 5" (127 mm) backset latches available.

Deadlatches:1" x 2" (25 mm x 57 mm), square corner faceplate, 7/8" (23 mm) housing," (13 mm) throw. Latches are furnished in brass, bronze or chrome finishes compatible with lock trim.

Strikes:Square corner, 1 1/8" x 2" x 3/32" (29 mm x 57 mm x 2 mm) T strike with 1 1/8" (29 mm) lip, furnished with dust box, #10-001 is standard. Optional lip lengths 1 " though 2" (25 mm - 51 mm)" (6 mm) radius round corner strikes and ANSI 1" x 4 7/8" (32 mm x 124 mm) strikes are also available.

Warranty:Commercial: three-year limited. Residential: Full mechanical lifetime.

Model:Schlage S170, FLA, 626, 605, 606, 609, 613, 625. S170FLA, S170FLA626, S170FLA605, S170FLA606, S170FLA625, S170FLA609, S170FLA613

Lock Chassis:Tubular construction. Zinc with steel cover.

Latch Bolt:Brass, chrome plated, 1/2˝ (13 mm) throw, deadlocking.

Exposed Trim:Levers are pressure cast zinc, plated to match finishes indicated. Roses, latch faceplates, and strikes are wrought brass or bronze.

Exceeds 400,000 cycle ANSI Grade 2 requirements

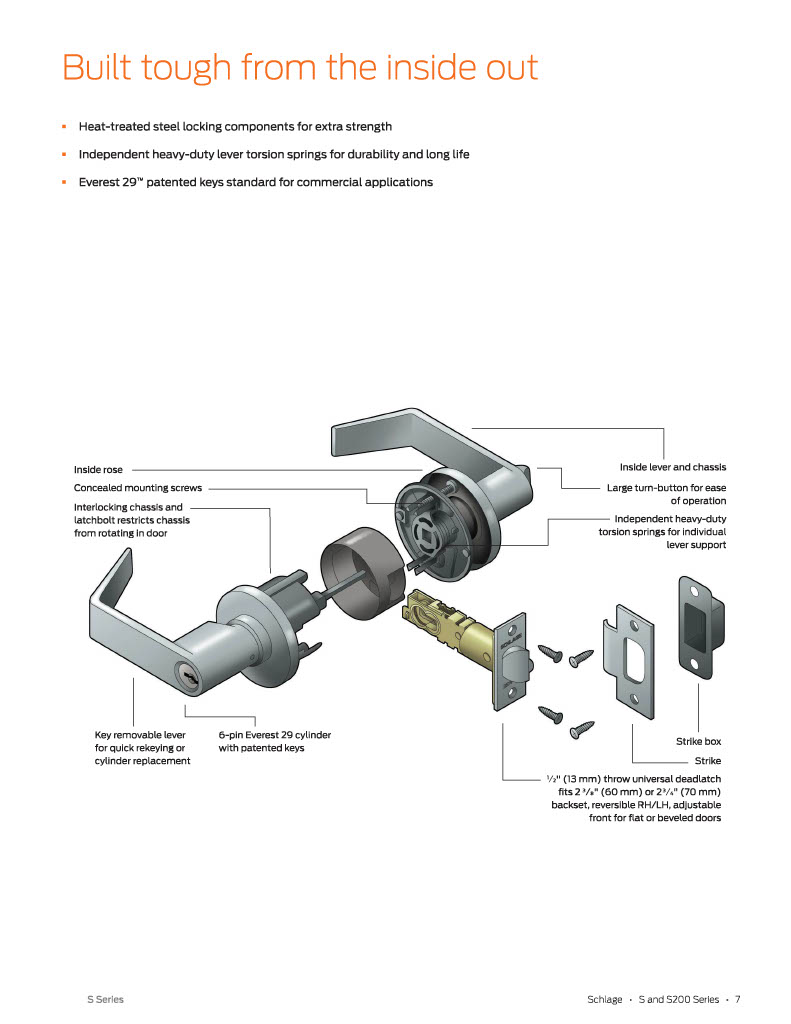

Interlocking chassis and latchbolt

Snap-On inside rose conceals mounting screws

Key removable outside lever for quick and easy cylinder replacement

Performance Features:

Handicap compliant levers.

Heat treated steel locking components for extra strength.

Independent heavy duty lever torsion springs for durability and long life.

Non-handed levers (except Flair design).

Snap-on inside rose conceals mounting screws.

Extra-strong Everest patented keys standard for Commercial customers.

Certifications

ANSI Meets or exceeds A156.2 Series 4000, Grade 2 strength and operational requirements.

Federal Meets FF-H-106C.California State Reference Code (Formerly Title 19, California State Fire Marshal Standard)Neptune and Saturn designs comply; levers return to within.1/2˝ of door face.

UL / cUL: All locks listed for A label single doors, 4 x 8. Letter F and UL symbol on latch front indicate listing.
