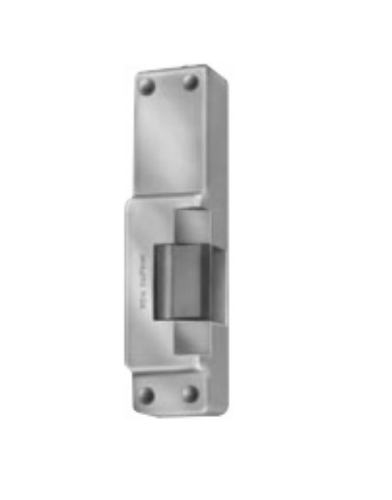

Von Duprin 6114-DS 32D Electric Strike w/ Dual Signal Switch

Von Duprin 6114DS Electric Strike with Dual Signal Switch

For use with rim night latches having up to 3⁄4˝ (19mm) bolt throw. Replace Folger Adam 310-5.

6114-DS Strike with Dual Signal Switch has two SPDT contacts, one switch monitors the tripper which is depressed when the latchbolt is inserted into the strike pocket. The second switch monitors the condition of the strike lip, open or closed and locked, DS is standard, rated 24V, operating range from 2 ampere to 50 milliampere.

Heavy-duty stainless steel construction Tested to over 250,000 cycles 1500 lbs. holding strength 70 lbs. impact strength.

*FSE - Fail Secure* electric strikes require power to be applied to unlock the strike lip. On loss of power, the strike is locked. Field convertible with parts.

24VDC standard with 12VDC and AC operation optional.

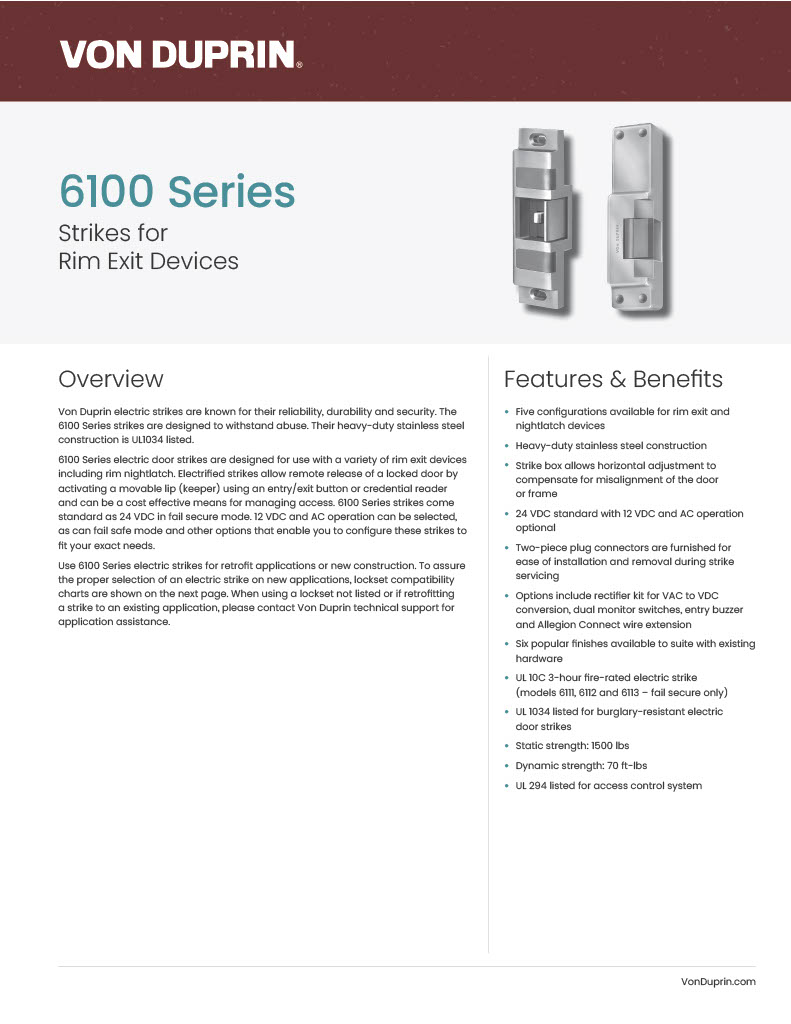

***Features and Benefits*

Accepts 3⁄4˝ (19mm) Throw Latchbolt Non-handed Horizontally Adjustable Strike box is adjustable to compensate for any misalignment of the door or frame Two piece plug connectors are furnished for ease of installation and for removal during strike servicing.

Options

AC Operation: SO12 and SO24 are rectifier kits to  convert AC voltage to operate the  DC solenoids. These kits are field installable and plug in-line to solenoid.

EB - Entry Buzzer: Is available for use with fail-secure strikes. Installed in the frame and in parallel with the circuit, the buzzer will sound when the strike is unlocked.

Finishes:

US32D Satin Stainless

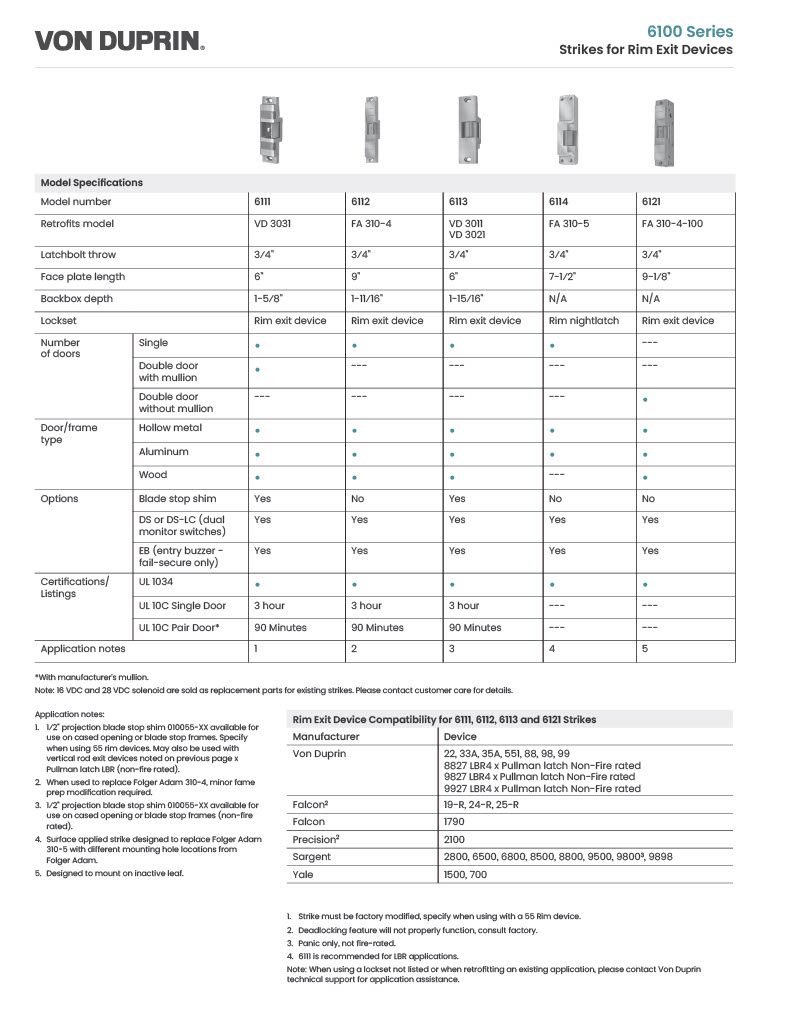

Model: 6114DS24V32D, 6114DS12V32D, 6114DSFSE, 6114DS12V, 6114DS24VDC, 6114DS12VDC, 6114DSUS32D

**

**

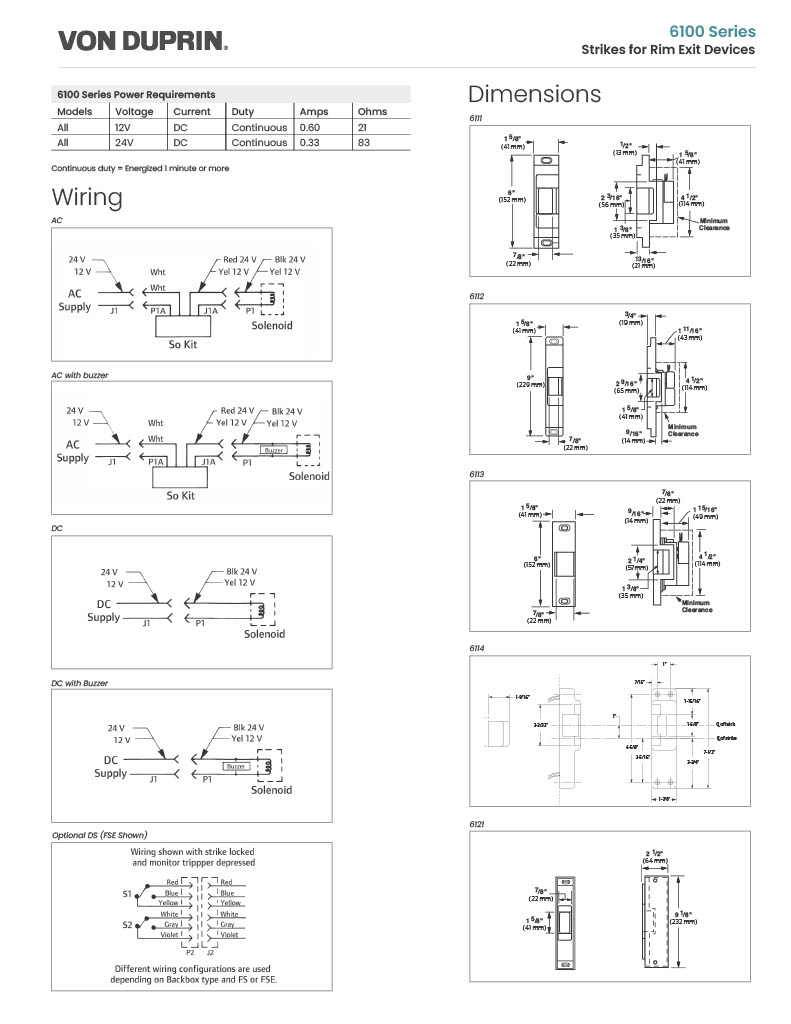

Dimensions:

?

**?
