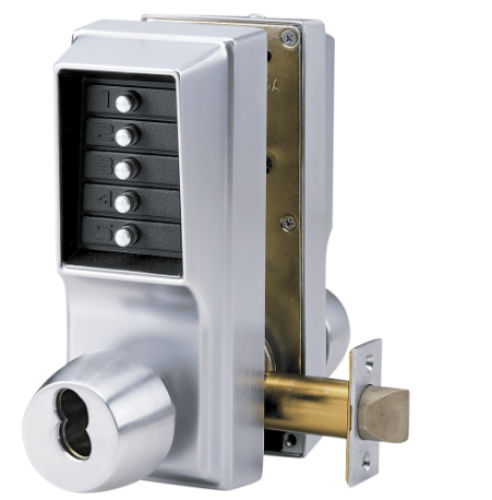

Dormakaba Simplex EE1021M/EE1021M-26D 2-Sided Lock f/ Medeco - Satin Chrome

The Dormakaba Simplex EE1021M/EE1021M is a heavy-duty mechanical pushbutton lock that delivers combination-code access control on both sides of the door, with key override prepared for Medeco high-security cores on each side. No wiring, no batteries, no electronics. It's the specification lock of choice for controlled-access spaces where you need independent pushbutton codes on entry and egress sides: evidence rooms, pharmacy storage, mental health units, secure research labs, data center cages, and government facilities. 3-hour UL/ULC fire rated, vandal resistant, highly water resistant.

What Is the Simplex EE1021M

The EE1021M is part of the Simplex EE1000 Series, Dormakaba's double-sided mechanical pushbutton lock line. The "EE" stands for Entry/Egress, meaning the lock requires a code to pass in either direction. The "1021" code indicates combination plus key override function, and the "M" suffix tells you the lock is machined and prepared for Medeco cylinders specifically. Pair the lock with the EE1021M on both sides and you get independent pushbutton codes plus independent Medeco key overrides on entry and egress, which matters for two-person-integrity environments where entry credentials and egress credentials are audited separately. The mechanical design means no power outage, no dead battery, and no access control server dependency will ever lock the door.

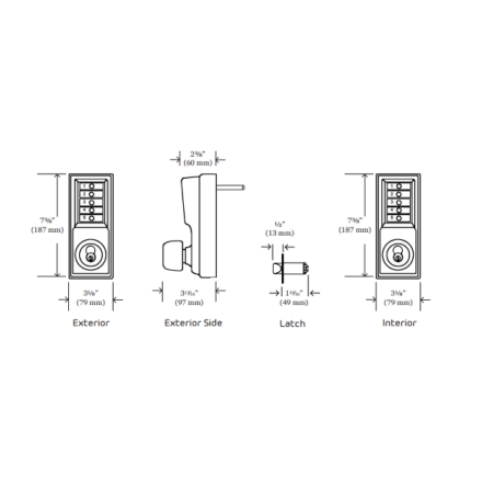

Dormakaba Simplex EE1021M Specifications

Full specs for your door schedule:

• Function: combination plus key override entry, combination plus key override egress (both sides)

• Series: Simplex EE1000 (double-sided mechanical pushbutton)

• Cylinder prep: Medeco (supply your own Medeco cores on each side)

• Lock type: cylindrical lock with knob

• Housing: heavy-duty cast front housing with unified trim plate and cast knobs

• Pushbuttons: vandal-resistant solid metal, mechanically coded

• Water resistance: highly water resistant (suitable for exterior and harsh indoor environments)

• Handing: factory-handed left hand (LH), easily field-reversible

• Door thickness: 1-3/8" to 2-1/4"

• Backset: 2-3/4" (70mm) standard, 2-3/8" (60mm) optional

• Latch: 1/2" (13mm) throw standard, 3/4" (19mm) throw optional

• Strike: standard strike plate included, ASA strike plate available

• Fire rating: 3-hour UL/ULC for A-labeled doors

• Standard finish on this SKU: 26D (626) Satin Chrome

• Power source: none (fully mechanical, no batteries or wiring)

EE1000 Series Variants (EE1011, EE1021B, EE1021C, EE1021M)

The EE1000 Series ships in several configurations. The EE1011/EE1011 is the base combination-only version with no key override. The EE1021B adds key override using standard Best SFIC or Yale keyways. The EE1021C prepares the lock for Corbin Russwin cylinders. This EE1021M prepares both sides for Medeco cores. Each suffix matches a specific masterkey system, so confirm your facility's existing key system before ordering. If you have a Medeco system in place, the EE1021M integrates cleanly without requiring a separate keyway or rekeying the building.

How the Double-Sided Pushbutton Lock Works

Each side of the door accepts an independent combination code. Users on the outside enter their 5-digit (up to 13-position) combination, the lock disengages, and the door opens. The inside side operates the same way with its own separate code, so egress requires authentication just like entry. The key override on each side is for lockout recovery, forgotten combinations, and emergency access. Because the lock is 100% mechanical, it never requires power, never loses programming, and never fails due to dead batteries. Combinations are changed on-site without opening the lock or removing the door hardware. The 3-hour UL fire rating keeps it compliant on A-labeled fire doors.

Where to Buy the Simplex EE1021M

We've stocked Dormakaba Simplex mechanical pushbutton locks since 2001, and the EE1021M ships the same day from the Simplex EE1000 Double Sided Lock lineup.
