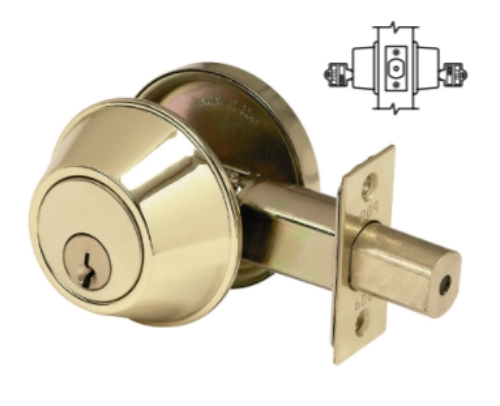

PDQ KV137 Double Cylinder, Commercial Duty Rim Cylinder Deadbolt

The PDQ KV137 is a double cylinder rim deadbolt from the PDQ KV series, conforming to ANSI function E2142. Both the exterior and interior sides require a key to retract the bolt — there is no thumbturn on either face. Grade comparable to PDQ's SD Series Grade 2 cylindrical locks and suitable for light commercial and residential applications. The 1" throw bolt contains a 1/4" case-hardened steel roll pin for saw resistance. Standard Schlage C compatible keyway. Non-handed. Five finishes available. One-year limited warranty.

What double cylinder function means and where it's specified

Double cylinder deadbolts require a key for both entry from outside and exit from inside. Unlike a single cylinder deadbolt that has a thumbturn for interior egress, a double cylinder configuration gives no interior access without a key. This is specified on doors where the interior handle or glazing presents a security risk. If a door has a glass panel or sidelight within arm's reach of the inside thumbturn, a single cylinder deadbolt is vulnerable to glass breaking followed by thumbturn operation. The double cylinder removes that vulnerability because the interior side still requires a key.

The practical tradeoff is that every person who needs to exit through the door must have a key. For residential applications, this is typically limited to the primary homeowner. For light commercial applications, it's typically keyed building staff. In any fire-rated or life-safety application, double cylinder deadbolts require careful review against local code, as some jurisdictions restrict their use on egress paths. Confirm applicable building and fire codes for the specific occupancy type before specifying a double cylinder deadbolt on any egress door.

Cylinder, keyway, and IC core options on the KV137

The KV137 ships with a 6-pin brass insert cylinder keyed to 5 pins as the standard configuration. The standard keyway is SCC, which is Schlage C compatible, one of the most widely available commercial keyways in the US market. This allows the KV137 to be keyed into an existing Schlage C keyway master key system without specifying a proprietary keyway. Other keyways from additional manufacturers are also available at ordering.

Interchangeable core options in 6-pin or 7-pin are available for facilities running IC master key programs. The KV137 IC configuration is compatible with Best, Falcon, and Arrow core formats, which covers a broad range of institutional master key system platforms. Keying options at ordering are keyed different (standard), keyed alike, master keyed, construction master keyed, grand master keyed, and zero bitted. Two keys ship with every lock as standard.

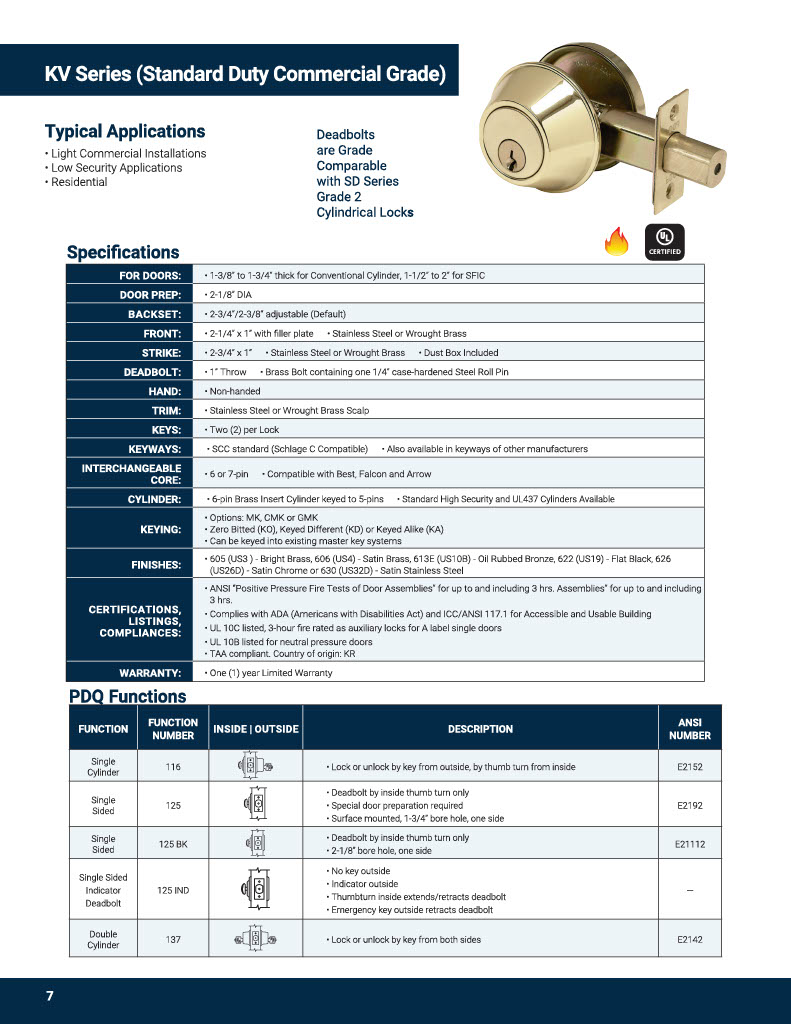

Physical specifications, finishes, and KV series context

The KV137 installs on doors 1-3/8" to 1-3/4" thick using a 2-1/8" diameter bore. With an SFIC cylinder, door thickness range extends to 1-1/2" to 2". Standard backset is 2-3/4", adjustable to 2-3/8" in the field. The bolt front measures 2-1/4" x 1" in stainless steel or wrought brass, and the strike is 2-3/4" x 1-1/8" in matching material. The trim is a stainless steel or wrought brass scalp. The lock is non-handed and installs on left or right hand doors without modification.

Five finish options are available: 605 bright brass, 606 satin brass, 613 oil rubbed bronze, 626 satin chrome, and 630 satin stainless steel. Within the PDQ deadbolt line, the KV series is the commercial duty tier. The KM series is the commercial grade heavy duty tier and the KT series is the extra heavy duty mortise cylinder tier for more demanding applications. For the full range of PDQ deadbolt configurations, browse the PDQ cylindrical deadbolts catalog. The complete cylindrical deadbolts section covers all brands and grades. The broader deadbolts catalog includes single cylinder, double cylinder, and specialty configurations across the full product range.

Select your finish, keyway, and keying option when ordering. Confirm local code requirements for double cylinder deadbolts on egress doors before specifying. The KV137 is the commercial duty tier — the KM137 is the heavy duty variant in the same double cylinder function.
