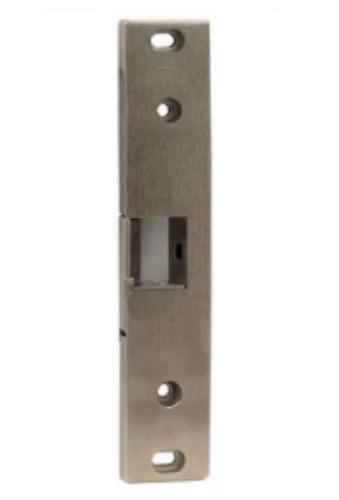

RCI 0163-32D, 1/2" Rim Surface Mount Electric Strike - Satin Stainless Steel

R-0163
1-Page1-0163
R-0163
1-Page1-0163
naxt
prev

Product Details

RCI (Rutherford Controls) 0163-32D, 1/2" Rim Surface Mount Electric Strike* - Satin Stainless Steel*

Energy: 270mA (max at 12VDC), 11-16VAC, 12VAC/VDC Or 24VAC/VDC

Mode: Fail-Secure

Strength: 1,500lbf Static, 70ft-lb Dynamic

Endurance: 250,000 Cycles

Warranty: 5 Year Limited

Description And Features:

Designed to fit in tight situations where the exit device is mounted very close to the door frame, e.g. aluminum storefront applications.

  For maximum latch engagement, the strike keeper has been designed to pivot out of the strike body versus rolling out of the strike.

Accommodates 1/2 to 3/4 (13 mm19 mm) latch projection.

Horizontal adjustment ensures proper latch positioning to compensate for door misalignment  up to 1/4 (6.4 mm).

Shim may be added to the strike cavity to engage with misaligned deadlatch. Lockdown holes for secure mount.

Cooler operation  runs cool to the touch; no suppressor kit needed.

High-grade stainless steel ensures superior strength and creates a sleek aesthetic.

  Non-handed.

Plug-in wire connectors.

Dimensions: 1-3/4" W x 9" H x 1/2" D (45mm x 229mm x 13mm)

UL294 Listed for Access Control Unit Accessory (6th Edition).

UL1034 burglary-resistant Listed.

RCI 0163-32D, 1/2" Rim Surface Mount Electric Strike - Satin Stainless Steel

SKU: 0163-32D

In Stock
Picture for manufacturer RCI
icon Chat

$441.60

About this item

This solenoid rim strike is a surface-mounted electric strike designed to work with Pullman style rim exit device latches. Designed to fit in tight situations where the exit device is mounted very close to the door frame, e.g. aluminum storefront applications.

Resources

No resources added to this product.

RCI (Rutherford Controls) 0163-32D, 1/2" Rim Surface Mount Electric Strike* - Satin Stainless Steel*

Energy: 270mA (max at 12VDC), 11-16VAC, 12VAC/VDC Or 24VAC/VDC

Mode: Fail-Secure

Strength: 1,500lbf Static, 70ft-lb Dynamic

Endurance: 250,000 Cycles

Warranty: 5 Year Limited

Description And Features:

Designed to fit in tight situations where the exit device is mounted very close to the door frame, e.g. aluminum storefront applications.

  For maximum latch engagement, the strike keeper has been designed to pivot out of the strike body versus rolling out of the strike.

Accommodates 1/2 to 3/4 (13 mm19 mm) latch projection.

Horizontal adjustment ensures proper latch positioning to compensate for door misalignment  up to 1/4 (6.4 mm).

Shim may be added to the strike cavity to engage with misaligned deadlatch. Lockdown holes for secure mount.

Cooler operation  runs cool to the touch; no suppressor kit needed.

High-grade stainless steel ensures superior strength and creates a sleek aesthetic.

  Non-handed.

Plug-in wire connectors.

Dimensions: 1-3/4" W x 9" H x 1/2" D (45mm x 229mm x 13mm)

UL294 Listed for Access Control Unit Accessory (6th Edition).

UL1034 burglary-resistant Listed.

R-0163
RCI 0163-32D, 1/2" Rim Surface Mount Electric Strike - Satin Stainless Steel

Product code: 0163-32D

In Stock

$441.60

$441.60

R-0163
RCI 0163-32D, 1/2" Rim Surface Mount Electric Strike - Satin Stainless Steel

Product code: 0163-32D

In Stock

$441.60

$441.60

RCI 0163-32D, 1/2" Rim Surface Mount Electric Strike - Satin Stainless Steel

SKU: 0163-32D
