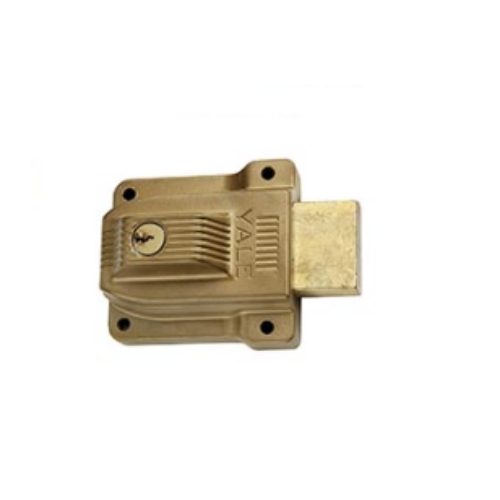

Accentra (Yale) 112-1/4 Series Heavy-duty Double Cylinder Latchbolt, for Inswinging Door

The Accentra (Yale) 112-1/4 is a heavy-duty double cylinder rim latchbolt for inswinging doors, part of the Yale 112 Series. The lock mounts on the surface of the door (rim installation) with a 2-3/8-inch backset and is designed for doors from 1-1/4 inches to 2-1/4 inches thick. The case is zinc alloy in a sprayed brass finish. The outside is furnished with a 5-pin rim cylinder (Yale 1109E) and the inside uses a fixed 3-pin brass cylinder. Two keys (RB8) are included. SKU: 112-1/4.

What a rim latchbolt is and how the Yale 112 Series installs

A rim lock is a surface-mounted lock that fastens to the face of the door and the door frame rather than being mortised into the door edge. The 112-1/4 mounts on the interior face of the door using the case body and a corresponding strike or keeper on the door frame or jamb. This installation method is used on doors where a full mortise lock installation is not practical, on older door stock where the door edge is too narrow or too soft for a mortise pocket, and on residential entry doors in older residential buildings and apartments where rim locks are the standard hardware type.

The 112-1/4F is the outswinging door version of the same lock. The 112-1/4 is specifically for inswinging doors. Confirm the door swing direction before ordering, as the latchbolt direction and strike geometry differ between the inswing and outswing versions. For the full range of Accentra lever locks and other door hardware from the Yale/Accentra line, the Accentra lever locks catalog covers the available options. For mortise locks as an alternative to rim lock installation on commercial doors, the mortise locks section covers the range.

How the double cylinder function works on the Yale 112-1/4 rim lock

The 112-1/4 is a double cylinder latchbolt, meaning both the outside and the inside operate by key. The outside cylinder is a 5-pin rim cylinder (1109E), which is the Yale 1109 format in a 5-pin configuration. Turning the outside key operates the latchbolt from the exterior. The inside cylinder is a fixed 3-pin brass cylinder with no alternatives available for substitution. Turning the inside key throws or retracts the deadbolt from the interior. Neither side has a thumbturn.

The double cylinder configuration is specified when interior key control is required alongside exterior key control, typically on glass-panel doors where a thumbturn on the interior could be operated through broken glass, or on utility access doors where interior egress is not required to be immediate and tool-free. Confirm that the applicable fire and building code permits a double cylinder configuration at the intended installation location before ordering. For key blanks compatible with the 1109E and RB8 key profiles, the cylinders, cores, and keys section covers the available options.

Case material, finish, and door thickness range for the 112-1/4

The 112-1/4 case is zinc alloy with a sprayed brass finish. Sprayed brass is the only available case finish for this model. The zinc alloy construction is standard for Yale 112 Series rim locks and provides the structural housing for the latchbolt mechanism, cylinder bores, and mounting hardware. The case dimensions accommodate door thicknesses from 1-1/4 inches to 2-1/4 inches, which is a wider range than most cylindrical or mortise locks and covers thin door stock, standard residential doors, and heavier commercial doors in the same unit.

Two keys are included with the 112-1/4, cut to the RB8 key blank. For the complete range of commercial locks and security hardware, browse the commercial locks catalog. For builders hardware and other door hardware components, the builders hardware section covers the available range at American Locksets.

Confirm the door swings inward before ordering. The outswing version is the 112-1/4F. Two keys included. Sprayed brass finish only.
